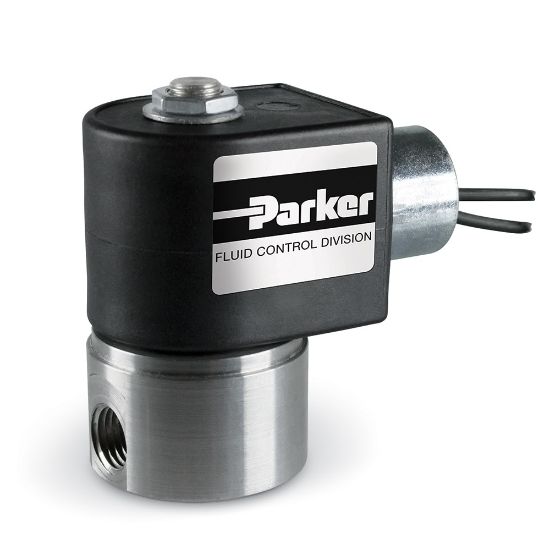

Picture of Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves - 04F25C2122C3FPH75

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves - 04F25C2122C3FPH75

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 04F25C2122C3FPH75
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coil Type1/2" Conduit, 18" LeadsVoltage (V)12 VDC
Power (Watts)11.5 Watts (DC)Seal MaterialNBR
Flow Factor 1 (Cv)1.2Orifice 1 Size (inch)11/32
Body MaterialBRASSPort Size1/4
Port TypeNPTDivisionFluid Control Division
MediaGeneral Purpose for AirFunctionNormally Closed (NC)
Coil Type1/2" Conduit, 18" LeadsValve Type2-Way
Body MaterialBrassInput Voltage12.0
Seal MaterialNBRActuation TypeDiaphragm
Orifice 1 Size11/32Orifice 2 Sizen/a
Product SeriesGold RingNumber of Ports2
Power Consumption11.5 W (DC)Flow Coefficient 11.2
Flow Coefficient 2n/aCoil Specifications MetNEMA 4X
Maximum Fluid Temperature150Minimum Fluid Temperature0
Maximum Pressure Differential300 psi (DC)Minimum Pressure Differential3
