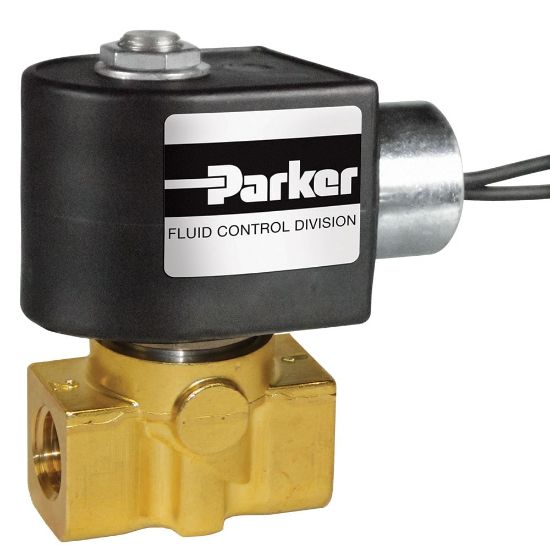

Picture of Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves - 7321KBN3SN00N0C111C2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves - 7321KBN3SN00N0C111C2

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 7321KBN3SN00N0C111C2
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body MaterialBRASSCoil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)24 VDCSeal MaterialNBR
Power (Watts)10 Watt (DC)Orifice 1 Size (inch)7/16
Flow Factor 1 (Cv)2.5Maximum Pressure Differential (psi)60 psi (DC)
Port TypeNPTBody MaterialBrass
DivisionFluid Control DivisionMediaGeneral Purpose for Air
FunctionNormally Closed (NC)Coil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type2-WayInput Voltage24.0 VDC
Seal MaterialNBROrifice 2 Sizen/a
Number of Ports2Flow Coefficient 2n/a
Coil Specifications MetNEMA 4XMinimum Fluid Temperature0 °F
Minimum Pressure Differential0 psiPort Size3/8 inch
Maximum Pressure Differential60 psi (DC)Maximum Fluid Temperature185 °F
Actuation TypeMechanicalProduct Series7000 Series
Power Consumption10 W (DC)Orifice 1 Size7/16 inch
Flow Coefficient 12.5 Cv
