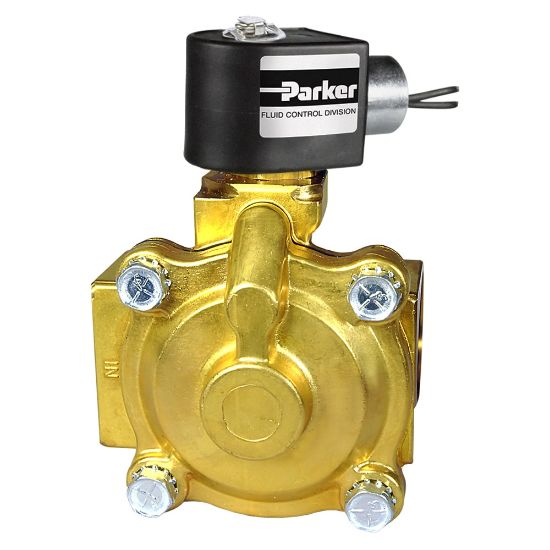

Picture of Parker 2-Way Normally Open, 1" NPT General Purpose Solenoid Valves - 16F24O2164ACFPH01

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Open, 1" NPT General Purpose Solenoid Valves - 16F24O2164ACFPH01

Parker 2-Way Normally Open, 1" NPT Solenoid Valves provide operating pressures of 125 PSI and flow factors of 13 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 16F24O2164ACFPH01
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coil TypeDIN Form A, Class FVoltage (V)24/60
Port Size1Port TypeNPT
Body MaterialBrassDivisionFluid Control Division
MediaGeneral Purpose for AirFunctionNormally Open (NO)
Coil TypeDIN Form A, Class FValve Type2-Way
Input Voltage24/60Seal MaterialNBR
Orifice 2 Sizen/aProduct SeriesGold Ring Series
Number of Ports2Flow Coefficient 2n/a
Coil Specifications MetClass FMaximum Fluid Temperature180
Minimum Fluid Temperature0Minimum Pressure Differential5
Power Consumption11Actuation TypePiloted
Maximum Pressure Differential125Orifice 1 Size1
Flow Coefficient 113
