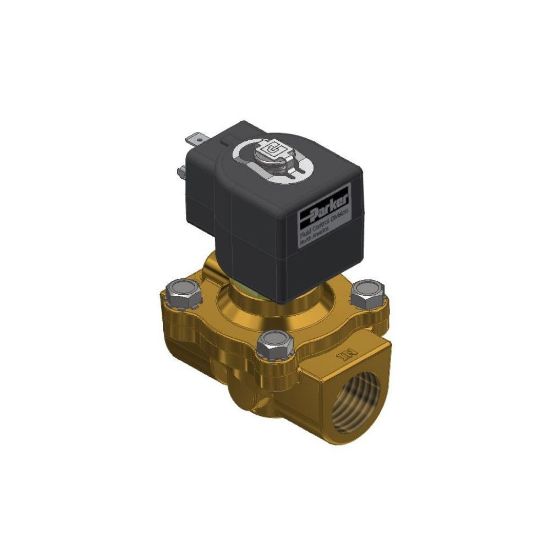

Picture of Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves - 08F23O2140A3FPH75

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves - 08F23O2140A3FPH75

Parker 2-Way Normally Open, 1/2" NPT Solenoid Valves provide operating pressures up to 150 PSI and a flow factor of 4 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 08F23O2140A3FPH75
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coil TypeDIN Form A, Class FBody MaterialBRASS
Seal MaterialNBRVoltage (V)12 VDC
Power (Watts)11.5 Watt (DC)Orifice 1 Size (inch)5/8
Maximum Pressure Differential (psi)125 psi (DC)MediaGeneral Purpose for Air
FunctionNormally Open (NO)Coil TypeDIN Form A, Class F
Port Size1/2Port TypeNPT
Body MaterialBrassInput Voltage12.0
Seal MaterialNBRActuation TypeHung Diaphragm
Power Consumption11.5 W (DC)DivisionFluid Control Division
Maximum Fluid Temperature150Maximum Pressure Differential125 psi (DC)
Minimum Pressure Differential0Valve Type2-Way
Orifice 1 Size5/8Orifice 2 Sizen/a
Product SeriesGold Ring SeriesNumber of Ports2
Flow Coefficient 14Flow Coefficient 2n/a
Coil Specifications MetClass FMinimum Fluid Temperature0
