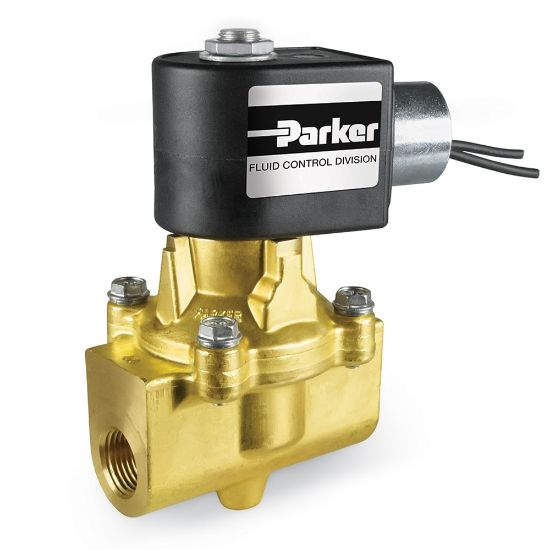

Picture of Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves - 72228BN4UV00N0H322C1

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves - 72228BN4UV00N0H322C1

Parker 2-Way Normally Open, 1/2" NPT Solenoid Valves provide operating pressures up to 150 PSI and a flow factor of 4 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 72228BN4UV00N0H322C1
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body MaterialBRASSVoltage (V)12 VDC
Seal MaterialFKMMaximum Pressure Differential (psi)125 psi (DC)
Coil Type1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9Power (Watts)22 Watt (DC)
Orifice 1 Size (inch)7/16Port Size1/2
Port TypeNPTBody MaterialBrass
DivisionFluid Control DivisionMediaGeneral Purpose for Air
FunctionNormally Open (NO)Valve Type2-Way
Input Voltage12.0Orifice 2 Sizen/a
Number of Ports2Flow Coefficient 2n/a
Minimum Fluid Temperature0Minimum Pressure Differential0
Seal MaterialFKMActuation TypeDirect Lift
Maximum Pressure Differential125 psi (DC)Flow Coefficient 14
Maximum Fluid Temperature185Product Series7000 Series
Power Consumption22 W (DC)Coil Type1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9
Orifice 1 Size7/16Coil Specifications MetNEMA 9
