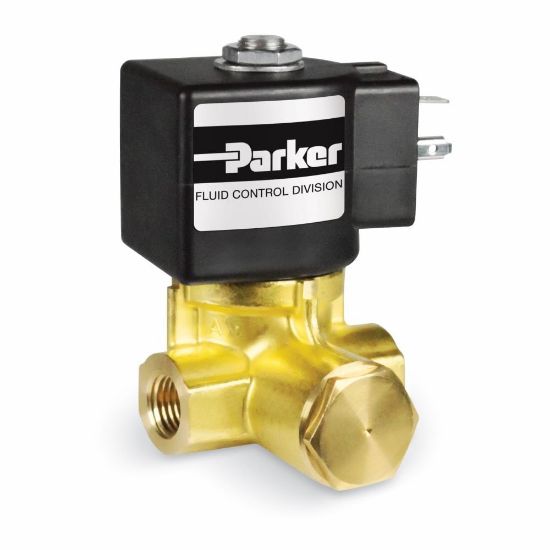

Picture of Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves - 73222BN2MN00N0D200P3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves - 73222BN2MN00N0D200P3

Parker 2-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to .96 CV's. They have brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 73222BN2MN00N0D200P3
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Voltage (V)110/50-120/60Seal MaterialNBR
Power (Watts)10 Watt (AC)Maximum Pressure Differential (psi)200 psi (AC)
Flow Factor 1 (Cv)0.76Orifice 1 Size (inch)7/16
Coil TypeDIN Form A, Class HPort TypeNPT
Port Size1/4Body MaterialBrass
DivisionFluid Control DivisionMediaGeneral Purpose for Air
FunctionNormally Open (NO)Valve Type2-Way
Input Voltage110/50-120/60Seal MaterialNBR
Orifice 2 Sizen/aNumber of Ports2
Flow Coefficient 2n/aMinimum Fluid Temperature0
Minimum Pressure Differential5Maximum Fluid Temperature185
Power Consumption10 W (AC)Maximum Pressure Differential200 psi (AC)
Coil Specifications MetClass HActuation TypeManual
Product Series7000 SeriesOrifice 1 Size7/16
Flow Coefficient 10.76Coil TypeDIN Form A, Class H
Product resources

Literature and Reference Materials
