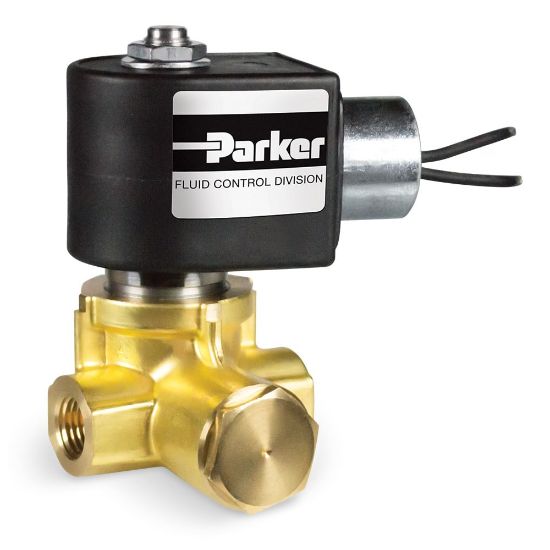

Picture of Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves - 73222BN2MN00N0H111C1

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves - 73222BN2MN00N0H111C1

Parker 2-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to .96 CV's. They have brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 73222BN2MN00N0H111C1
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Voltage (V)12 VDCSeal MaterialNBR
Maximum Pressure Differential (psi)200 psi (DC)Coil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9
Power (Watts)10 Watt (DC)Flow Factor 1 (Cv)0.76
Orifice 1 Size (inch)7/16Port TypeNPT
Body MaterialBrassPort Size1/4 inch
DivisionFluid Control DivisionMediaGeneral Purpose for Air
FunctionNormally Open (NO)Valve Type2-Way
Input Voltage12.0 VDCSeal MaterialNBR
Orifice 2 Sizen/aNumber of Ports2
Flow Coefficient 2n/aMinimum Fluid Temperature0 °F
Minimum Pressure Differential5 psiMaximum Fluid Temperature185 °F
Maximum Pressure Differential200 psi (DC)Actuation TypeManual
Product Series7000 SeriesPower Consumption10 W (DC)
Coil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9Orifice 1 Size7/16 inch
Flow Coefficient 10.76 CvCoil Specifications MetNEMA 7
Product resources

Literature and Reference Materials
