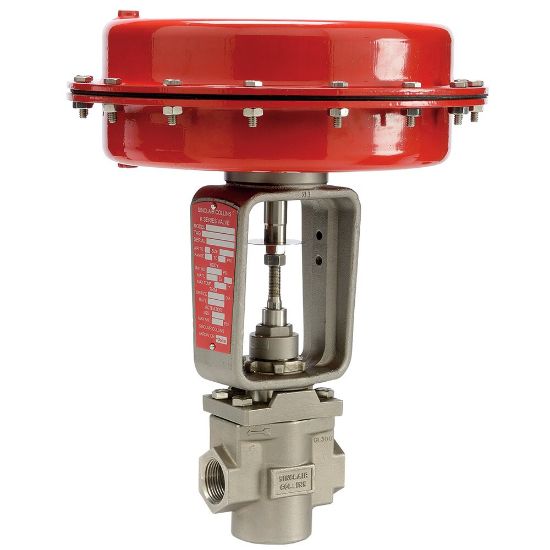

Picture of Parker 2-Way Sinclair Collins K Series, Normally Closed, 1" Process Control Valves - K22-42114000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Sinclair Collins K Series, Normally Closed, 1" Process Control Valves - K22-42114000

Parker 2-Way Sinclair Collins K Series, Normally Closed, 1" Valves are made for applications requiring higher media temperatures. Constructed of durable bronze or 316 stainless steel, these high performance valves are fully tested prior to shipping
Availability:
Backordered
SKU K22-42114000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow CharacteristicEqual%Body Material316 Stainless Steel
Actuator Size64Maximum Pressure Differential (psi)250
Body Material316 Stainless SteelMinimum Fluid Temperature-40 °F
Maximum Pilot Pressure35 psiFlow Coefficient 113 Cv
Maximum Fluid Temperature450 °FMaximum Pressure Differential250 psi
Seal MaterialStainless SteelOrifice 1 Size1.06 inch
Valve Type2-WayActuator Size64
Weight29 lbFunctionNormally Closed
MediaValves for steam, air, neutral gasses and liquidsActuation TypePneumatic Operated
Product SeriesSinclair Collins K SeriesNumber of Ports2
Port TypeNPTFDivisionFluid Control Division
Port Size1 inchFlow CharacteristicEqual%
Product resources

Literature and Reference Materials
