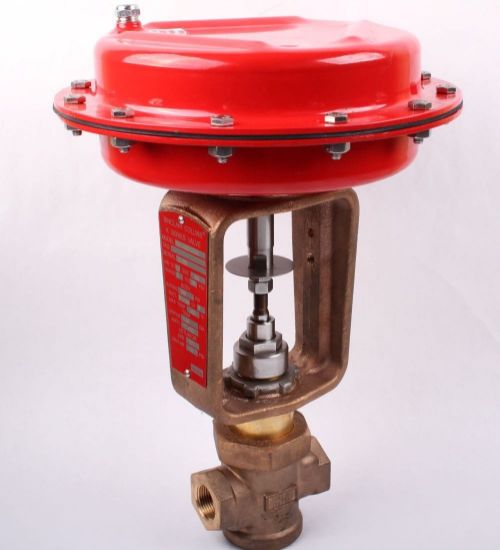

Picture of Parker 2-Way Sinclair Collins K Series, Normally Closed, 1/2" Process Control Valves - K02-22012000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Sinclair Collins K Series, Normally Closed, 1/2" Process Control Valves - K02-22012000

Parker 2-Way Sinclair Collins K Series, Normally Closed, 1/2" Valves are suited for applications requiring higher media temperatures. Constructed of durable bronze or 316 stainless steel, these high performance valves are fully tested prior to shipping
Availability:
Backordered
SKU K02-22012000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body MaterialBronzeActuator Size64
Flow CharacteristicEqual%Port Size1/2 inch
DivisionFluid Control DivisionPort TypeNPTF
Valve Type2-WayNumber of Ports2
FunctionNormally ClosedMinimum Fluid Temperature-40 °F
Maximum Pressure Differential250 psiWeight27 lb
Body MaterialBronzeSeal MaterialStainless Steel
Product SeriesSinclair Collins K SeriesMediaValves for steam, air, neutral gasses and liquids
Actuator Size64Actuation TypePneumatic Operated
Orifice 1 Size0.84 inchFlow Coefficient 16 Cv
Flow CharacteristicEqual%Maximum Pilot Pressure35 psi
Maximum Fluid Temperature400 °F
