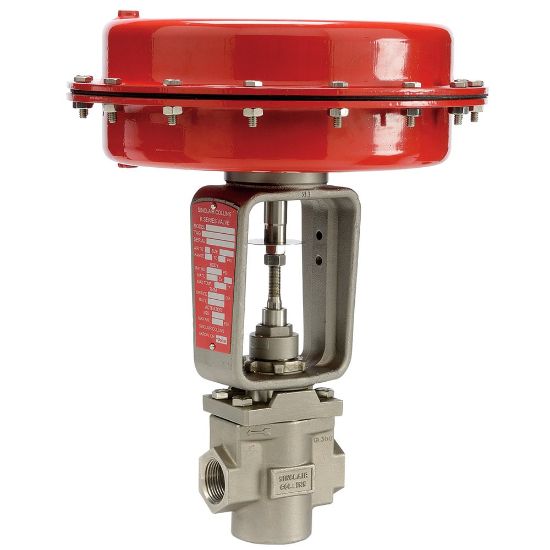

Picture of Parker 2-Way Sinclair Collins K Series, Normally Closed, 1/2" Process Control Valves - K21-21112000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Sinclair Collins K Series, Normally Closed, 1/2" Process Control Valves - K21-21112000

Parker 2-Way Sinclair Collins K Series, Normally Closed, 1/2" Valves are suited for applications requiring higher media temperatures. Constructed of durable bronze or 316 stainless steel, these high performance valves are fully tested prior to shipping
Availability:
Backordered
SKU K21-21112000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body Material316 Stainless SteelActuator Size37
Flow CharacteristicLinearMinimum Fluid Temperature-40 °F
Maximum Pilot Pressure35 psiSeal MaterialStainless Steel
Orifice 1 Size0.84 inchBody Material316 Stainless Steel
Maximum Fluid Temperature450 °FMaximum Pressure Differential250 psi
Port TypeNPTFFlow Coefficient 16 Cv
Valve Type2-WayFlow CharacteristicLinear
Weight19 lbProduct SeriesSinclair Collins K Series
Actuation TypePneumatic OperatedPort Size1/2 inch
MediaValves for steam, air, neutral gasses and liquidsFunctionNormally Closed
Number of Ports2DivisionFluid Control Division
Actuator Size37
