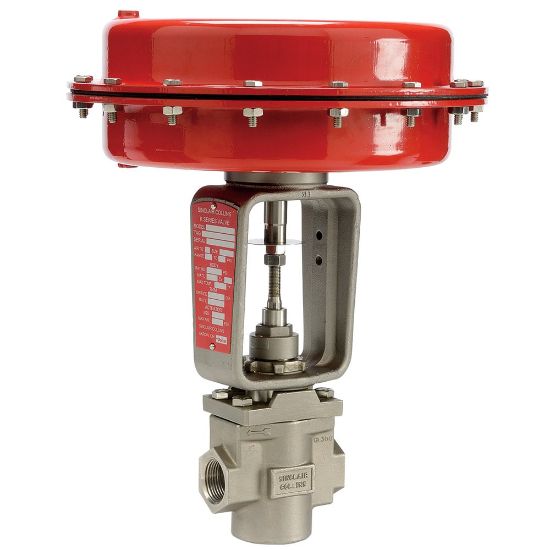

Parker 2-Way Sinclair Collins K Series, Normally Closed, 3/4" Process Control Valves - K01-31013000

Name: Parker 2-Way Sinclair Collins K Series, Normally Closed, 3/4" Process Control Valves - K01-31013000
SKU: K01-31013000

Parker 2-Way Sinclair Collins K Series, Normally Closed, 3/4" Valves are ideally suited for applications requiring higher media temperatures. Constructed of highly durable bronze, these high performance valves are fully tested prior to shipping

Availability:

Backordered

SKU K01-31013000

POR

Qty:

Products specifications

Attribute name	Attribute value
Actuator Size	37	Flow Characteristic	Linear
Weight	22 lb	Port Size	3/4 inch
Division	Fluid Control Division	Port Type	NPTF
Valve Type	2-Way	Number of Ports	2
Function	Normally Closed	Minimum Fluid Temperature	-40 °F
Maximum Pressure Differential	250 psi	Body Material	Bronze
Seal Material	Stainless Steel	Product Series	Sinclair Collins K Series
Media	Valves for steam, air, neutral gasses and liquids	Actuator Size	37
Actuation Type	Pneumatic Operated	Orifice 1 Size	0.84 inch
Flow Coefficient 1	8 Cv	Flow Characteristic	Linear
Maximum Pilot Pressure	35 psi	Maximum Fluid Temperature	400 °F

Product resources

Literature and Reference Materials

Sinclair Collins K Series Process Control Valves (PDF)
