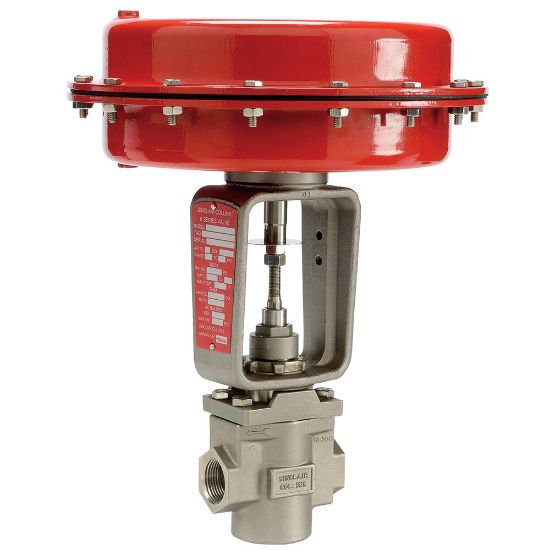

Picture of Parker 2-Way Sinclair Collins K Series, Normally Open, 1/2" Process Control Valves - K31-22112000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Sinclair Collins K Series, Normally Open, 1/2" Process Control Valves - K31-22112000

Parker 2-Way Sinclair Collins K Series, Normally Open, 1/2" Valves are suited for applications requiring higher media temperatures. Constructed of durable bronze or 316 stainless steel, these high performance valves are fully tested prior to shipping.
Availability:
Backordered
SKU K31-22112000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Actuator Size37 (square inches)Flow CharacteristicEqual%
Body Material316 Stainless SteelBody Material316 Stainless Steel
Minimum Fluid Temperature-40 °FMaximum Pilot Pressure35 psi
Orifice 1 Size0.84 inchMaximum Pressure Differential250 psi
Maximum Fluid Temperature450 °FSeal MaterialStainless Steel
Valve Type2-WayFunctionNormally Open
Flow Coefficient 16 CvProduct SeriesSinclair Collins K Series
Port Size1/2 inchActuation TypePneumatic Operated
Port TypeNPTFWeight25 lb
MediaValves for steam, air, neutral gasses and liquidsDivisionFluid Control Division
Number of Ports2Flow CharacteristicEqual%
Actuator Size37 (square inches)
