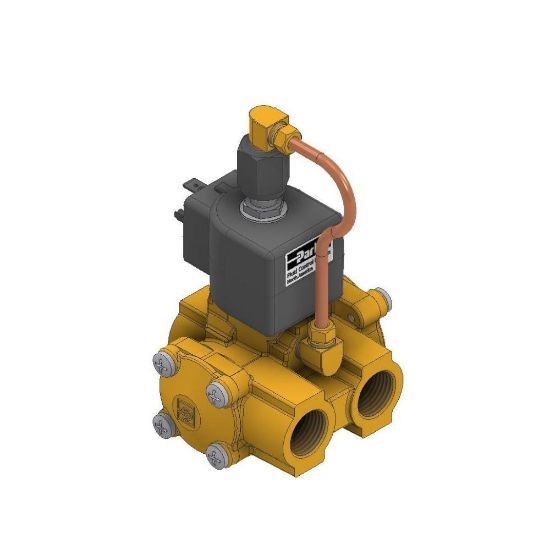

Picture of Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves - 73312BN4UNJ0N0D200P3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves - 73312BN4UNJ0N0D200P3

Parker 3-Way Normally Closed, 1/2" NPT Solenoid Valves provide operating pressures up to 4.0 psi and flow factors up to 180 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 73312BN4UNJ0N0D200P3
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Voltage (V)110/50-120/60Power (Watts)10 Watt (AC)
Coil TypeDIN Form A, Class HMaximum Pressure Differential (psi)180 psi (AC)
Mechanical OptionExhaust Return PipeOrifice Main (inch)1/2
Flow Factor Main (Cv)3.6Port Size1/2
Port TypeNPTBody MaterialBrass
DivisionFluid Control DivisionMediaGeneral Purpose for Air
FunctionNormally Closed (NC)Valve Type3-Way
Input Voltage110/50-120/60Seal MaterialNBR
Orifice 2 Sizen/aNumber of Ports3
Flow Coefficient 2n/aMinimum Fluid Temperature0
Main Flow Coefficient3.6Maximum Fluid Temperature185
Exhaust Flow Coefficientn/aPower Consumption10 W (AC)
Exhaust Orifice Sizen/aCoil Specifications MetClass H
Actuation TypeManualProduct Series7000 Series
Coil TypeDIN Form A, Class HMaximum Pressure Differential180 psi (AC)
Main Orifice Size1/2Additional OptionsExhaust Return Pipe
Minimum Pressure Differential10
