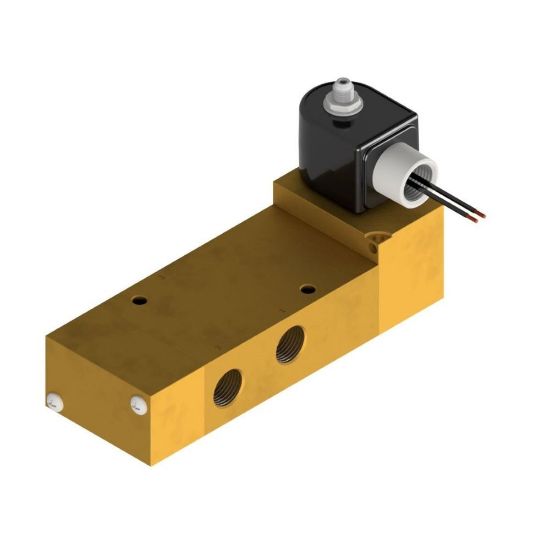

Picture of Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves - 73317BN4UN00N0C111P3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves - 73317BN4UN00N0C111P3

Parker 3-Way Normally Closed, 1/2" NPT Solenoid Valves provide operating pressures up to 4.0 psi and flow factors up to 180 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 73317BN4UN00N0C111P3
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4XVoltage (V)110/50-120/60
Mechanical OptionNo OptionMaximum Pressure Differential (psi)150 psi (AC)
Power (Watts)10 Watt (AC)Orifice Main (inch)1/4
Flow Factor Main (Cv)4Port Size1/2
Port TypeNPTBody MaterialBrass
DivisionFluid Control DivisionMediaGeneral Purpose for Air
FunctionNormally Closed (NC)Coil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type3-WayInput Voltage110/50-120/60
Seal MaterialNBROrifice 2 Sizen/a
Number of Ports3Flow Coefficient 2n/a
Coil Specifications MetNEMA 4XMaximum Fluid Temperature150
Minimum Fluid Temperature0Additional OptionsNo Option
Maximum Pressure Differential150 psi (AC)Exhaust Flow Coefficientn/a
Power Consumption10 W (AC)Main Flow Coefficient4
Exhaust Orifice Sizen/aActuation TypeManual
Product Series7000 SeriesMain Orifice Size1/4
Minimum Pressure Differential30
