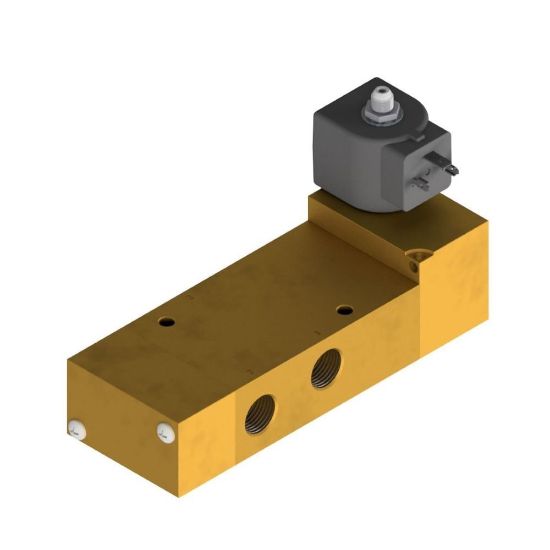

Picture of Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves - 73317BN4UN00N0D200C1

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves - 73317BN4UN00N0D200C1

Parker 3-Way Normally Closed, 1/2" NPT Solenoid Valves provide operating pressures up to 4.0 psi and flow factors up to 180 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 73317BN4UN00N0D200C1
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Voltage (V)12 VDCMechanical OptionNo Option
Maximum Pressure Differential (psi)150 psi (DC)Power (Watts)10 Watt (DC)
Coil TypeDIN Form A, Class HOrifice Main (inch)1/4
Flow Factor Main (Cv)4Port Size1/2
Port TypeNPTBody MaterialBrass
DivisionFluid Control DivisionMediaGeneral Purpose for Air
FunctionNormally Closed (NC)Valve Type3-Way
Input Voltage12.0Seal MaterialNBR
Orifice 2 Sizen/aNumber of Ports3
Flow Coefficient 2n/aMaximum Fluid Temperature150
Minimum Fluid Temperature0Additional OptionsNo Option
Maximum Pressure Differential150 psi (DC)Exhaust Flow Coefficientn/a
Main Flow Coefficient4Exhaust Orifice Sizen/a
Coil Specifications MetClass HActuation TypeManual
Product Series7000 SeriesPower Consumption10 W (DC)
Coil TypeDIN Form A, Class HMain Orifice Size1/4
Minimum Pressure Differential30
