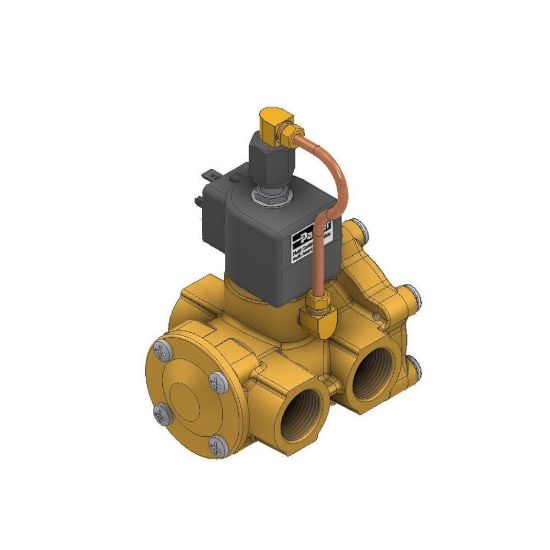

Picture of Parker 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves - 73312BN52NJ0N0D200C1

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves - 73312BN52NJ0N0D200C1

Parker 3-Way Normally Closed, 3/4" NPT Solenoid Valves provide operating pressures of 180 psi and flow factors of 7.3 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 73312BN52NJ0N0D200C1
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Voltage (V)12 VDCPower (Watts)10 Watt (DC)
Coil TypeDIN Form A, Class HMaximum Pressure Differential (psi)180 psi (DC)
Port TypeNPTPort Size3/4
Body MaterialBrassDivisionFluid Control Division
MediaGeneral Purpose for AirFunctionNormally Closed (NC)
Valve Type3-WayInput Voltage12.0
Seal MaterialNBROrifice 2 Sizen/a
Number of Ports3Flow Coefficient 2n/a
Minimum Fluid Temperature0Maximum Fluid Temperature185
Exhaust Flow Coefficientn/aExhaust Orifice Sizen/a
Coil Specifications MetClass HActuation TypeManual
Product Series7000 SeriesPower Consumption10 W (DC)
Coil TypeDIN Form A, Class HMaximum Pressure Differential180 psi (DC)
Main Orifice Size3/4Additional OptionsExhaust Return Pipe
Main Flow Coefficient7.3Minimum Pressure Differential10
