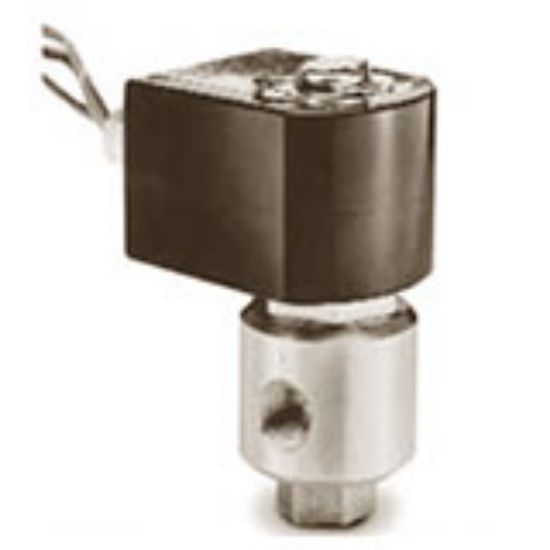

Parker 3-Way Universal, 1/4" NPT General Purpose Solenoid Valves - 04F30U2106ADF4C15

Name: Parker 3-Way Universal, 1/4" NPT General Purpose Solenoid Valves - 04F30U2106ADF4C15
SKU: 04F30U2106ADF4C15

Parker 3-Way Universal, 1/4" NPT Solenoid Valves provide operating pressures of 50 psi and flow factors of 0.12 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:

Backordered

SKU 04F30U2106ADF4C15

POR

Qty:

Products specifications

Attribute name	Attribute value
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Voltage (V)	220/50-240/60
Port Size	1/4 inch	Port Type	NPT
Division	Fluid Control Division	Media	Liquids and Gases
Function	Universal	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type	3-Way	Body Material	Brass
Input Voltage	220/50 to 240/60	Seal Material	NBR
Actuation Type	Direct Acting	Orifice 2 Size	n/a
Product Series	Gold Ring Series	Number of Ports	3
Power Consumption	16 W (AC)	Flow Coefficient 2	n/a
Coil Specifications Met	Class F	Maximum Fluid Temperature	200 °F
Minimum Fluid Temperature	0 °F	Maximum Pressure Differential	50 psi (AC)
Minimum Pressure Differential	0 psi	Main Orifice Size	3/32 inch
Additional Options	n/a	Exhaust Orifice Size	3/32 inch
Main Flow Coefficient	0.12 Cv	Exhaust Flow Coefficient	0.12 Cv
