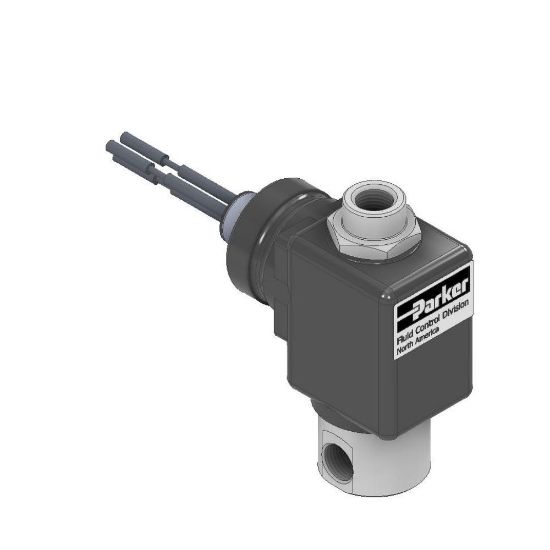

Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves - 30CU02EV4B2F

Name: Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves - 30CU02EV4B2F
SKU: 30CU02EV4B2F

Parker 3-Way Universal, 1/8" NPT Solenoid Valves provide operating pressures up to 200 psi and flow factors up to 0.38 CV's. They offer a 303 stainless body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:

Backordered

SKU 30CU02EV4B2F

POR

Qty:

Products specifications

Attribute name	Attribute value
Voltage (V)	110/50-120/60	Maximum Pressure Differential (psi)	150 psi (AC)
Coil Type	Metal Enc, 18" Leads	Power (Watts)	10 Watt (AC)
Orifice Main (inch)	3/64	Flow Factor Main (Cv)	0.05
Port Type	NPT	Division	Fluid Control Division
Media	General Purpose for Air	Function	Universal
Valve Type	3-Way	Input Voltage	110/50-120/60
Actuation Type	Direct Acting	Orifice 2 Size	n/a
Number of Ports	3	Flow Coefficient 2	n/a
Coil Specifications Met	Class F	Minimum Pressure Differential	0 psi
Additional Options	n/a	Seal Material	FKM
Maximum Pressure Differential	150 psi (AC)	Port Size	1/8 inch
Body Material	Stainless Steel 303	Maximum Fluid Temperature	240 °F
Main Flow Coefficient	0.05 Cv	Exhaust Flow Coefficient	n/a
Power Consumption	10 W (AC)	Coil Type	Metal Enc, 18" Leads
Exhaust Orifice Size	n/a	Product Series	204/304 Series
Minimum Fluid Temperature	32 °F	Main Orifice Size	3/64 inch
