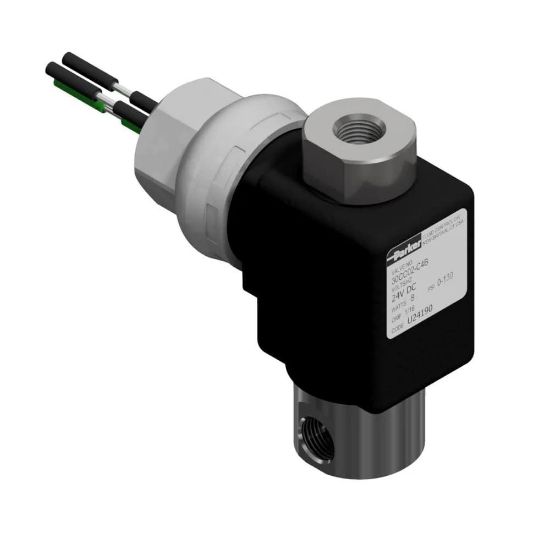

Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves - 30CU02EV4C4E

Name: Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves - 30CU02EV4C4E
SKU: 30CU02EV4C4E

Parker 3-Way Universal, 1/8" NPT Solenoid Valves provide operating pressures up to 200 psi and flow factors up to 0.38 CV's. They offer a 303 stainless body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:

Backordered

SKU 30CU02EV4C4E

POR

Qty:

Products specifications

Attribute name	Attribute value
Coil Type	1/2" Conduit, 18" Leads	Voltage (V)	110/50-120/60
Maximum Pressure Differential (psi)	150 psi (AC)	Power (Watts)	10 Watt (AC)
Orifice Main (inch)	3/64	Flow Factor Main (Cv)	0.05
Port Type	NPT	Division	Fluid Control Division
Media	Liquids and Gases	Function	Universal
Coil Type	1/2" Conduit, 18" Leads	Valve Type	3-Way
Input Voltage	24/60	Actuation Type	Direct Acting
Orifice 2 Size	n/a	Number of Ports	3
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Minimum Pressure Differential	0 psi	Additional Options	n/a
Seal Material	FKM	Maximum Pressure Differential	150 psi (AC)
Port Size	1/8 inch	Body Material	Stainless Steel 303
Maximum Fluid Temperature	240 °F	Main Flow Coefficient	0.05 Cv
Exhaust Flow Coefficient	n/a	Power Consumption	10 W (AC)
Exhaust Orifice Size	n/a	Product Series	204/304 Series
Minimum Fluid Temperature	32 °F	Main Orifice Size	3/64 inch
