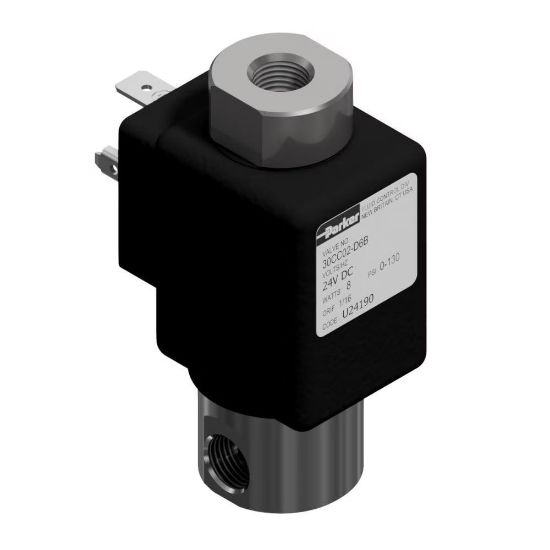

Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves - 30CU02GV4D6B

Name: Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves - 30CU02GV4D6B
SKU: 30CU02GV4D6B

Parker 3-Way Universal, 1/8" NPT Solenoid Valves provide operating pressures up to 200 psi and flow factors up to 0.38 CV's. They offer a 303 stainless body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:

Backordered

SKU 30CU02GV4D6B

POR

Qty:

Products specifications

Attribute name	Attribute value
Voltage (V)	110/50-120/60	Orifice Main (inch)	1/16
Flow Factor Main (Cv)	0.09	Power (Watts)	8 Watt (DC)
Coil Type	DIN Form A	Maximum Pressure Differential (psi)	100 psi (DC)
Port Type	NPT	Division	Fluid Control Division
Media	General Purpose for Air	Function	Universal
Valve Type	3-Way	Input Voltage	110/50-120/60
Actuation Type	Direct Acting	Number of Ports	3
Minimum Pressure Differential	0 psi	Main Orifice Size	1/16 inch
Additional Options	n/a	Main Flow Coefficient	0.09 Cv
Seal Material	FKM	Port Size	1/8 inch
Body Material	Stainless Steel 303	Maximum Fluid Temperature	240 °F
Maximum Pressure Differential	100 psi (DC)	Exhaust Flow Coefficient	n/a
Power Consumption	8 W (DC)	Exhaust Orifice Size	n/a
Product Series	204/304 Series	Minimum Fluid Temperature	32 °F
Coil Type	DIN Form A	Orifice 2 Size	1/16 inch
Flow Coefficient 2	0.1 Cv	Coil Specifications Met	Class H
