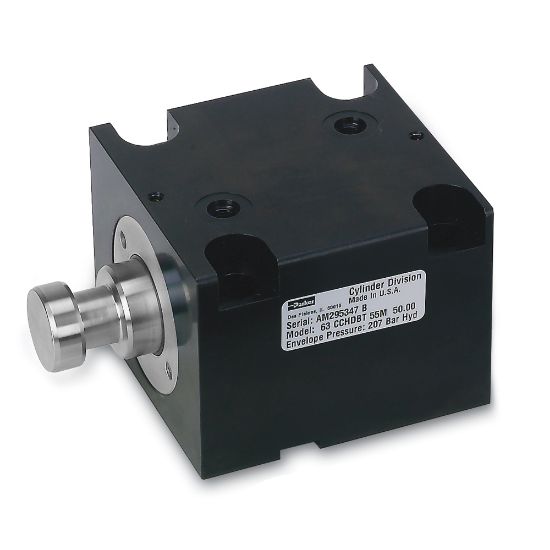

Picture of Parker Cylinder Series CHD - SERIES CHD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker Cylinder Series CHD - SERIES CHD

Series CHD Metric Compact Hydraulic Cylinders – best choice when mounting space is at a premium and the application demands a high force cylinder at operating pressures up to 207 bar with optional end-of-stroke position sensing.
Availability:
Backordered
SKU SERIES CHD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Bore Diameter20 to 80For Fluid TypeHydraulic Oil
Mounting Option13 Standard StylesProduct TypeCylinder Actuator
Operating Temperature-23 to 121Specifications MetISO 16656: 2004
TechnologyHydraulicsStroke Lengthup to 125 mm (depending on Bore Size)
Product SeriesSeries CHD Compact Hydraulic Cylinders - Steel Body ConstructionRod Diameter12 to 45
AssemblyCompact HydraulicDivisionCylinder Division
Operating Pressureup to 207Materials of ConstructionSteel
