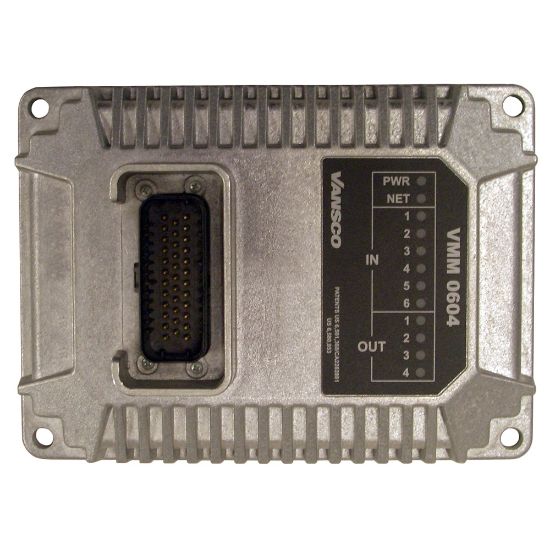

Picture of Parker Vansco Multiplexing Module - VMM0604 - 0836001ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker Vansco Multiplexing Module - VMM0604 - 0836001ECD

Parker's VMM0604 is a rugged unit that is a perfect controller for mobile equipment when used alone or with other VMM modules in a control system. The VMM0604 communicates using J1939 protocol over a CAN bus connection.
Availability:
Backordered
SKU 0836001ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Model NumberVMM0604DivisionElectronic Motion and Controls Division
IndustrySpecialtySoftwareVMMS Ladder Logic
Controller TypeMaster ControllerHousing MaterialAluminum
Number of Inputs6Number of Outputs4
Specifications Met2004/108/ECPower Supply Voltage24 V
Electrical ConnectionAMP SupersealOutput Current Rating2.5 A
Communication Interface1x CAN (J1939)Ingress Protection Rating66
Maximum Operating Temperature85 °CMinimum Operating Temperature-40 °C
