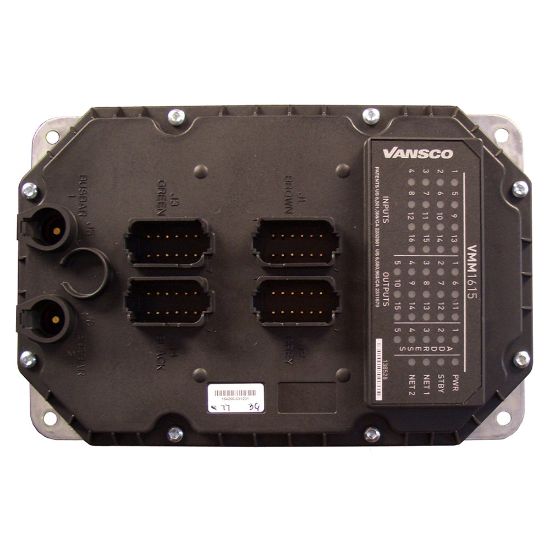

Parker Vansco Multiplexing Module - VMM1615 - 0935021ECD

Name: Parker Vansco Multiplexing Module - VMM1615 - 0935021ECD
SKU: 0935021ECD

Parker's VMM1615 module is a controller that can be used alone or with other VMM modules in a control system. The VMM1615 has 16 inputs and 15 outputs. The VMM1615 module communicates using J1939 protocol over a CAN bus connection.

Availability:

Backordered

SKU 0935021ECD

POR

Qty:

Products specifications

Attribute name	Attribute value
Model Number	VMM1615	Maximum Operating Temperature	85 °C
Software	VMMS Ladder Logic	Number of Outputs	15
Power Supply Voltage	24 V	Communication Interface	2x CAN (J1939)
Minimum Operating Temperature	-40 °C	Controller Type	Master Controller
Industry	Construction	Ingress Protection Rating	66
Output Current Rating	10 A	Specifications Met	2004/108/EC
Number of Inputs	16	Division	Electronic Motion and Controls Division
Housing Material	Plastic	Electrical Connection	Deutsch DT
