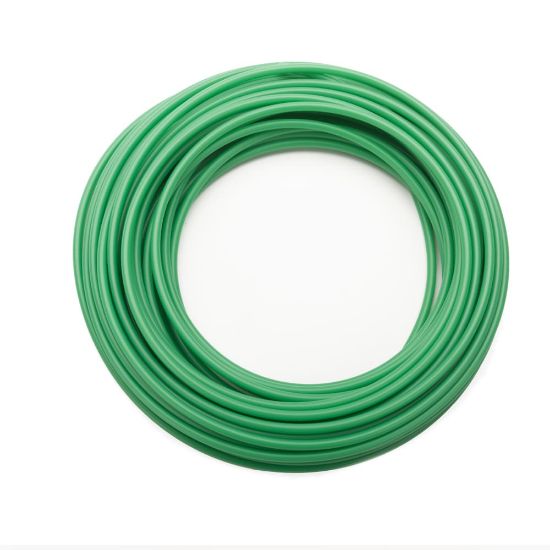

PE Tubing - E-43-G-0100

Name: PE Tubing - E-43-G-0100
SKU: E-43-G-0100

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

Availability:

Backordered

SKU E-43-G-0100

POR

Qty:

Products specifications

Attribute name	Attribute value
Nominal Outside Diameter	1/4 inch	Product Type	Fractional, Instr. Grade
Color	Green	Standard Pack Qty (ft)	100
Cover Color	n/a	Color	Green
Minimum Burst Pressure	480	Cover Material	n/a
Tube Outside Diameter	1/4	Maximum Operating Temperature	150
Weight	0.011	Minimum Bend Radius	1
Specifications Met	FDA	Maximum Operating Pressure	120
Tube Inside Diameter	0.17	Minimum Operating Temperature	-62
Size	1/4	Product Type	Instr. Grade
Tube Material	Polyethylene (PE)	Media	Air
Length per Package	100	Division	Parflex Division
Compatible Fitting	Dubl-Barb®	Application	Fluid Transfer
