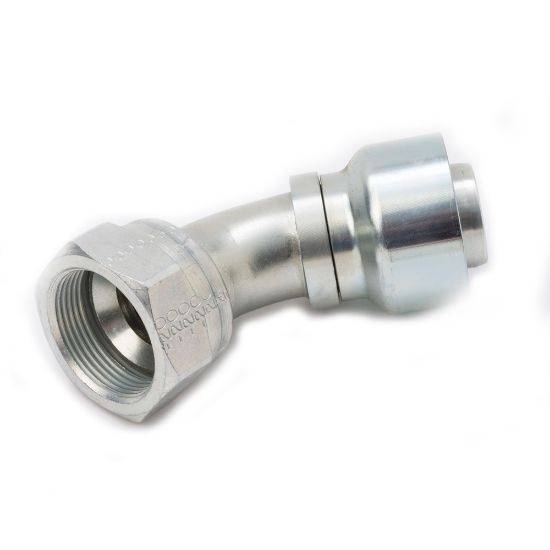

Picture of Permanent Fittings for 939/939B PTFE Hose – 93N Series - 13793N-16-16

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Permanent Fittings for 939/939B PTFE Hose – 93N Series - 13793N-16-16

Parker's 93N Series fittings are used on PTFE 939/939B hoses from Parflex division.
Availability:
Backordered
SKU 13793N-16-16
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1"Connection 2 Size1-5/16"-12
Product StyleFemale JIC 37° SwivelLength (inch)3.71"
BrandPARKERDivisionParflex Division
Body MaterialSteelTechnologyFluid & Gas Handling
Specifications MetN/AApplicationInstrumentation
CoatingChromium 6 Free-platedDivisionParflex Division
Hex Size 1n/aProduct TypeHose Fittings
ConfigurationHose to PortConnection 1 TypeHose
Connection 1 Size3/4 inch Hose I.D.IndustryFood & Beverage
For Fluid TypeGasesProduct Series93N
Maximum Operating Pressure10.3 MPaConnection 2 Size1-5/16"-12 inch Thread
Connection 2 TypeSwivelShapeElbow 45° Short Drop
Hex Size1-1/2 inch (see drawing legend J)Fitting Length94.2 mm
Connection Length2-5/8 inch Cut-off allowance (see drawing legend B)Drop Length23 mm
