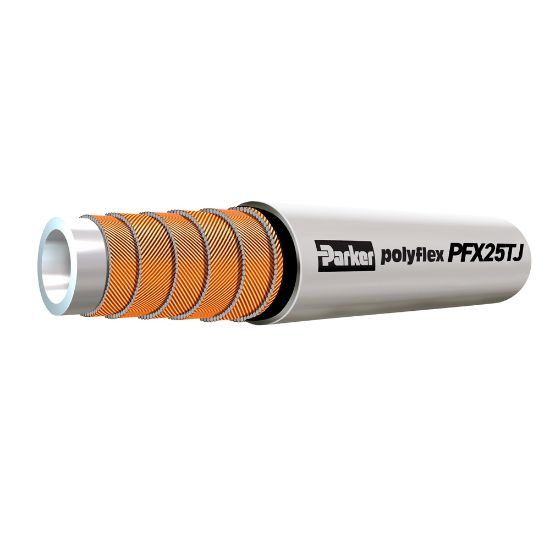

Picture of PFX25-05TJ Ultra High Pressure Waterblast Hose - 36,230 psi - PFX25-05TJ

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PFX25-05TJ Ultra High Pressure Waterblast Hose - 36,230 psi - PFX25-05TJ

Parker PFX25-05TJ is a 36,230 psi thermoplastic hose designed for waterejetting and water blast applications.
Availability:
Backordered
SKU PFX25-05TJ
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Design Factor2.5Hose Inner Tube MaterialPolyoxymethylene (POM)
Product StyleSingle LineMaximum Operating Pressure36230
Compatible Fitting2X SeriesMaximum Operating Temperature158
Hose Reinforcement Material8 Spirals of Maximum Tensile Steel WireWeight0.63
ApplicationHydrodemolitionCover ColorSilver
Minimum Operating Temperature14Minimum Bend Radius7.8
Outside Diameter0.840DivisionParflex Division
Cover MaterialPolyurethaneSize-5
Inside Diameter5/16Hose Cover TypeToughJACKET™
Specifications MetDIN 1829-2MediaWater
