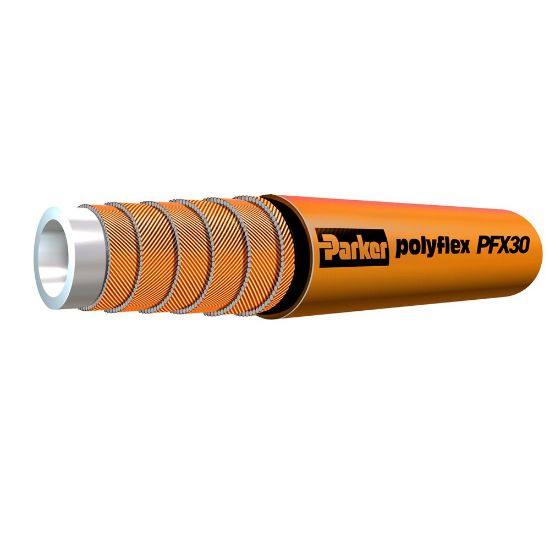

Picture of PFX30-05 UHP Hose - 43,645 psi - PFX30-05

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PFX30-05 UHP Hose - 43,645 psi - PFX30-05

Parker PFX30-05 is a 43,645 psi thermoplastic hose designed for waterejetting and water blast applications.
Availability:
Backordered
SKU PFX30-05
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
NotesPolyurethane CoverMinimum Operating Temperature-10 °C
DivisionParflex DivisionCover ColorOrange
Hose Reinforcement Material8 Spirals of Maximum Tensile Steel WireWeight0.64 lb/ft
Minimum Bend Radius11 inchDesign Factor2.3
Maximum Operating Pressure301 MPaInside Diameter7.8 mm
Hose Inner Tube MaterialPolyoxymethylene (POM)Compatible Fitting2X Series
ApplicationWater Jet CuttingOutside Diameter0.736 inch
Product StyleSingle LineMediaChemicals
Specifications MetDIN 1829-2Cover MaterialPolyurethane
Size-5Maximum Operating Temperature158 °F
