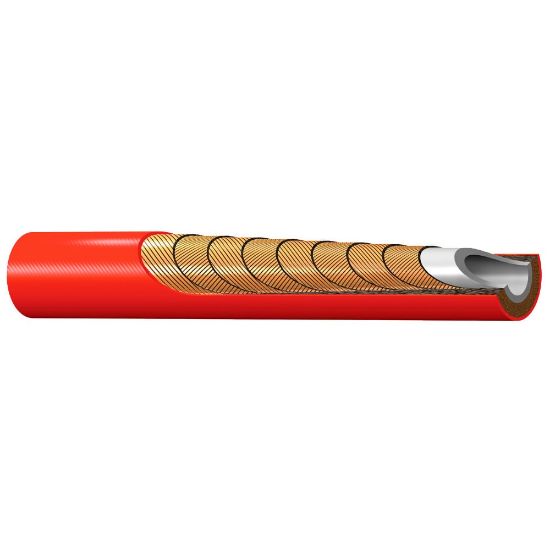

Picture of PFX38-05 UHP Hose - 55,000 psi - PFX38-05

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PFX38-05 UHP Hose - 55,000 psi - PFX38-05

Parker Ultra High Pressure PFX38-05 hose is an 8mm, 55,000 psi ultra high pressure water jet cutting equipment with water or with abrasive additives.
Availability:
Backordered
SKU PFX38-05
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
CoverPolyurethaneWeight0.85 lb/ft
Minimum Bend Radius280 mmMinimum Operating Temperature-10 °C
Hose Inner Tube MaterialPolyoxymethylene (POM)Product StyleSingle Line
Compatible Fitting2X SeriesDesign Factor2.1:1
Hose Reinforcement Material8 Spirals of Maximum Tensile Steel WireMaximum Operating Temperature158 °F
Outside Diameter0.807 inchApplicationWaterblasting
Cover ColorRedDivisionParflex Division
Specifications MetDIN 1829-2Cover MaterialPolyurethane
Size-5Maximum Operating Pressure3800 bar
MediaChemicalsInside Diameter5/16 inch
