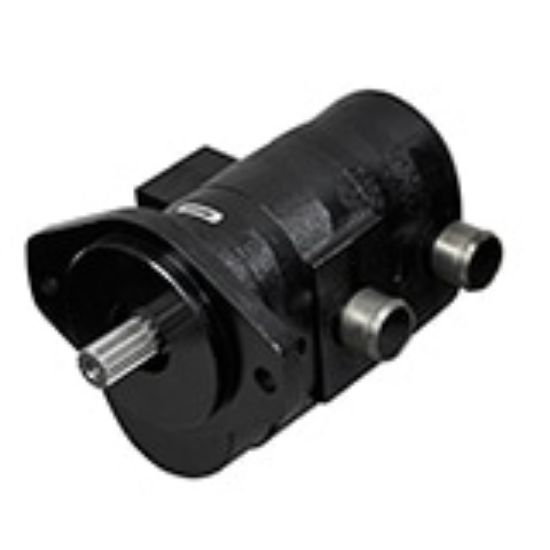

PGP130 Series - PGP130

Name: PGP130 Series - PGP130
SKU: PGP130

Parker’s PGP130 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction.

Availability:

Backordered

SKU PGP130

POR

Qty:

Products specifications

Attribute name	Attribute value
Direction of Rotation	Counterclockwise	Maximum Kinematic Viscosity	1200
Thru-Drive Capability	No	Pump Type	Gear
Maximum Flow Rate	26	Energy Recovery Capability	No
Maximum Fluid Temperature	80	Drain Option	Yes
Displacement	up to 51	Sensor Type	n/a
Circuit Path	Open	Charge Pump Included	No
Operating Pressure	up to 4351	Configuration	Tandem
Filter Included	No	Port Type	Straight Threaded
Maximum Operating Speed	3,400	Maximum Operating Pressure	300
Media	Hydraulic Fluids	Body Material	Cast Iron
Maximum Noise Level	n/a	Radial Load Capacity	Consult Parker
Minimum Fluid Temperature	-20	For Fluid Type	Standard Hydraulic Fluids
Port Connection	ODT	Division	Pump & Motor Division
Port Location	Side Ports	Minimum Kinematic Viscosity	10
Shaft Type	SAE	Maximum Displacement	51
Flow Rate	n/a	Mounting Option	SAE
