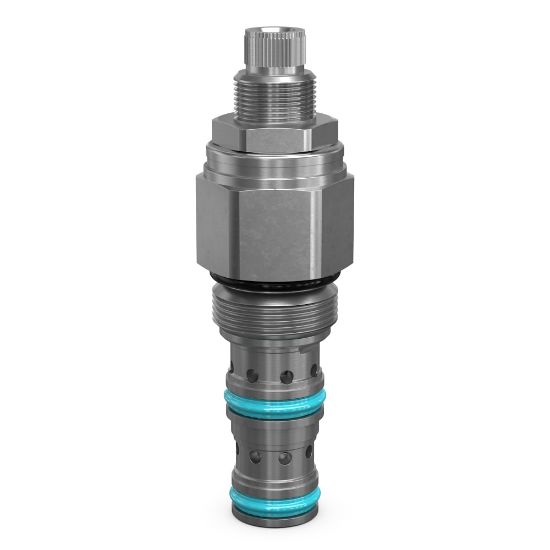

Pilot Operated Pressure Reducing Relieving Valves - PRH081F50V

Name: Pilot Operated Pressure Reducing Relieving Valves - PRH081F50V
SKU: PRH081F50V

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:

Backordered

SKU PRH081F50V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Flow Rate	8 GAL/MIN, 30 L/MIN
Mounting Type	Screw in cartridge valve	Cracking Pressure	N/A
Adjustment Mechanism	Fixed	Pressure Control Range	200-5000 PSI, 13.8-350 BAR
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Weight	0.25
Maximum Flow Rate	8	Actuation Type	Pressure Sensing
Operation Type	Automatic	Function	Pilot Operated
Flow Rate	8	Leak Rate	n/a
Maximum Tank Pressure	5000	Maximum Pressure Setting	5000
Pressure Control Sensitivity	n/a	Port Thread Size	n/a
Cracking Pressure	n/a	Cavity Size	C08-3
Configuration	Pressure Reducing/Relieving	Adjustment Mechanism	Fixed
Maximum Inlet Pressure Rating	5500	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400	Maximum Operating Temperature	+400
Mounting Type	Screw in cartridge valve	Installation Torque	32-36
Standard Setting Pressure	2500	Pressure Control Range	200-5000
Maximum Drain Flow Rate	0.15
