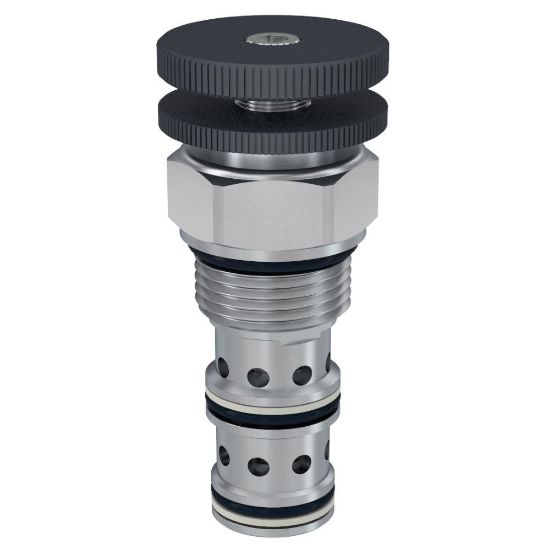

Pilot Operated Pressure Reducing Relieving Valves - PRH121F20V

Name: Pilot Operated Pressure Reducing Relieving Valves - PRH121F20V
SKU: PRH121F20V

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:

Backordered

SKU PRH121F20V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Mounting Type	Screw in cartridge valve
Cracking Pressure	N/A	Adjustment Mechanism	Fixed
Flow Rate	30 GAL/MIN, 113.7 L/MIN	Pressure Control Range	200-2000 PSI, 13.8-138 BAR
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Flow Rate	30
Weight	0.6	Maximum Flow Rate	30
Actuation Type	Pressure Sensing	Operation Type	Automatic
Function	Pilot Operated	Leak Rate	n/a
Maximum Tank Pressure	5000	Pressure Control Sensitivity	n/a
Port Thread Size	n/a	Cracking Pressure	n/a
Cavity Size	C12-3	Configuration	Pressure Reducing/Relieving
Adjustment Mechanism	Fixed	Maximum Inlet Pressure Rating	5500
Installation Torque	56	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400	Maximum Operating Temperature	+400
Mounting Type	Screw in cartridge valve	Standard Setting Pressure	1000
Maximum Drain Flow Rate	0.25	Maximum Pressure Setting	2000
Pressure Control Range	200-2000
