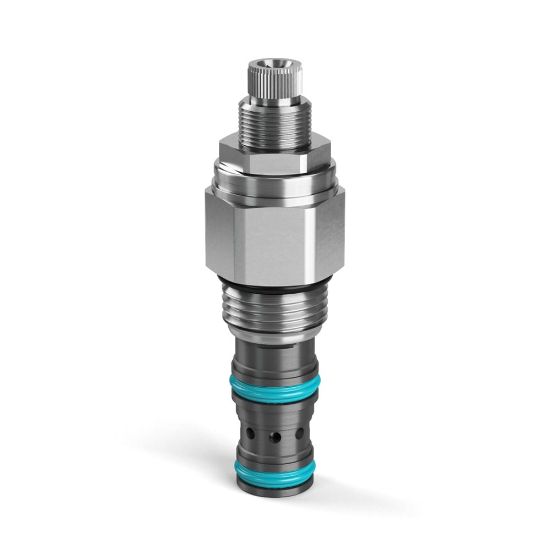

Pilot Operated Pressure Reducing Valves - PRH082F20

Name: Pilot Operated Pressure Reducing Valves - PRH082F20
SKU: PRH082F20

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:

Backordered

SKU PRH082F20

POR

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	8 GAL/MIN, 30 L/MIN	Seal Material	D-Ring (Standard)
Adjustment Mechanism	Fixed	Pressure Control Range	100-2000 PSI, 6.9-138 BAR
Minimum Operating Temperature	-35	Body Material	n/a
Maximum Operating Pressure	5000	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Weight	0.25	Maximum Flow Rate	8
Actuation Type	Pressure Sensing	Operation Type	Automatic
Function	Pilot Operated	Flow Rate	8
Maximum Tank Pressure	5000	Pressure Control Sensitivity	n/a
Seal Material	D-Ring (Standard)	Cavity Size	C08-3
Adjustment Mechanism	Fixed	Maximum Inlet Pressure Rating	5500
Maximum Operating Temperature	+200	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Mounting Type	Screw in cartridge valve
Operating Temperature	-35 to +200	Installation Torque	32-36
Valve Material	All parts steel. All operating parts hardened steel.	Standard Setting Pressure	1000
Maximum Pressure Setting	2000	Configuration	Pressure Reducing
Pressure Control Range	100-2000	Maximum Drain Flow Rate	0.15
