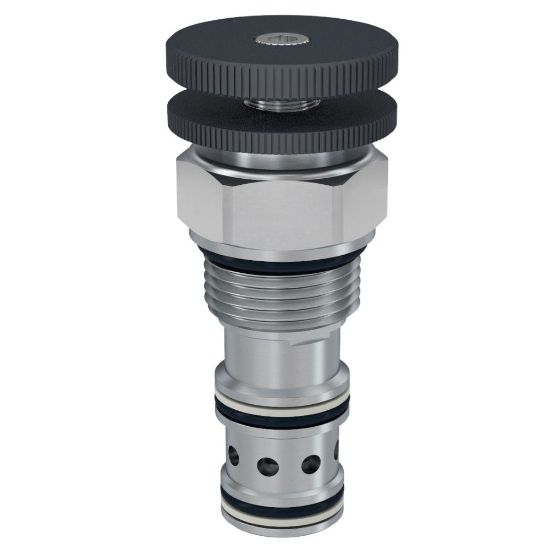

Pilot Operated Pressure Reducing Valves - PRH122F10

Name: Pilot Operated Pressure Reducing Valves - PRH122F10
SKU: PRH122F10

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:

Backordered

SKU PRH122F10

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Adjustment Mechanism	Fixed
Pressure Control Range	100-1000 PSI, 6.9-69 BAR	Flow Rate	30 GAL/MIN, 113.7 L/MIN
Seal Material	Nitrile	Body Material	n/a
Minimum Operating Temperature	-30	Maximum Operating Pressure	5000
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Rate	30
Weight	0.6	Maximum Flow Rate	30
Actuation Type	Pressure Sensing	Operation Type	Automatic
Function	Pilot Operated	Maximum Tank Pressure	5000
Pressure Control Sensitivity	n/a	Cavity Size	C12-3
Adjustment Mechanism	Fixed	Maximum Inlet Pressure Rating	5500
Installation Torque	56	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operating Temperature	-30 to +250
Maximum Operating Temperature	+250	Mounting Type	Screw in cartridge valve
Valve Material	All parts steel. All operating parts hardened steel.	Maximum Pressure Setting	1000
Standard Setting Pressure	500	Configuration	Pressure Reducing
Pressure Control Range	100-1000	Maximum Drain Flow Rate	0.5
