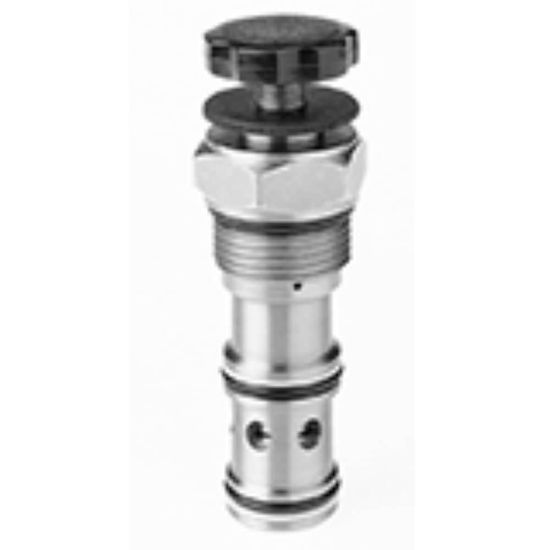

Pilot Operated Pressure Reducing Valves - PRH162T30

Name: Pilot Operated Pressure Reducing Valves - PRH162T30
SKU: PRH162T30

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:

Backordered

SKU PRH162T30

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Adjustment Mechanism	Tamper Resistant
Flow Rate	40 GAL/MIN, 150 L/MIN	Pressure Control Range	300-3000 PSI, 20.7-210 BAR
Seal Material	Nitrile	Body Material	n/a
Minimum Operating Temperature	-30	Maximum Operating Pressure	5000
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Flow Rate	40
Weight	2	Flow Rate	40
Actuation Type	Pressure Sensing	Maximum Pressure Setting	3000
Operation Type	Automatic	Adjustment Mechanism	Tamper Resistant
Function	Pilot Operated	Maximum Tank Pressure	5000
Cavity Size	C16-3	Maximum Inlet Pressure Rating	5500
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operating Temperature	-30 to +250	Maximum Operating Temperature	+250
Mounting Type	Screw in cartridge valve	Valve Material	All parts steel. All operating parts hardened steel.
Maximum Drain Flow Rate	0.25	Standard Setting Pressure	1500
Configuration	Pressure Reducing	Pressure Control Range	300-3000
Pressure Control Sensitivity	870 per turn	Installation Torque	73
