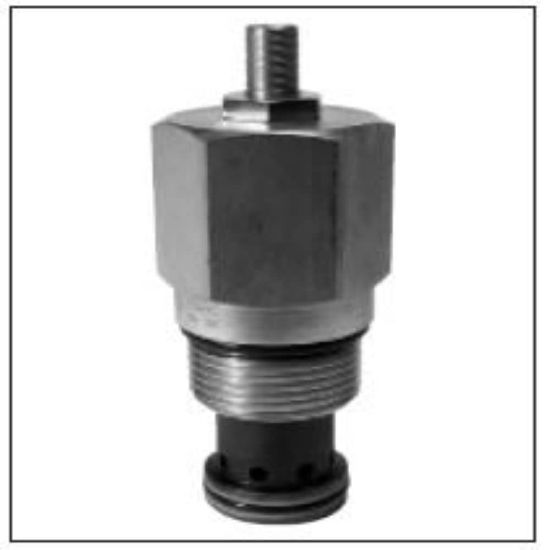

Picture of Pilot Operated Relief Valve with Free Reverse Check - A06P2PTV

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pilot Operated Relief Valve with Free Reverse Check - A06P2PTV

REGIONAL - Parker’s pilot operated relief valves with reverse flow check are designed for continuous duty applications for working with pressures up to 420 bar (6000 psi) and flows up to 350 lpm (92 gpm).
Availability:
Backordered
SKU A06P2PTV
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialFluorocarbonAdjustment MechanismTamper Resistant
Flow Rate106 GAL/MIN, 400 L/MINMaximum Operating Temperature400
Seal MaterialFluorocarbonBody Materialn/a
DivisionHydraulic Valve Systems DivisionFor Fluid TypeSynthetic Hydraulic Fluids
Operating Temperature-15 to 400Valve MaterialSteel (all parts)
Filter Efficiency RatingSAE Class 4Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-15Maximum Operating Pressure6000
Mounting TypeScrew-in CartridgeActuation TypePressure Sensing
Maximum Pressure Setting6000DivisionMobile Hydraulic Systems Division Europe
Leak Rate5 drops/min @ 1450 Psi (100 bar)Operation TypeAutomatic
Adjustment MechanismTamper ResistantMaximum Tank Pressure6000
Pressure Control Range145 to 6000Standard Setting Pressure2900
Maximum Inlet Pressure Rating6000FunctionPilot Operated
Weight1.26Flow Rate106
Cavity SizeC16-2ConfigurationPressure Relief with Reverse Check
Maximum Flow Rate106Installation Torque74
Pressure Control Sensitivity768 psi Per Turn
