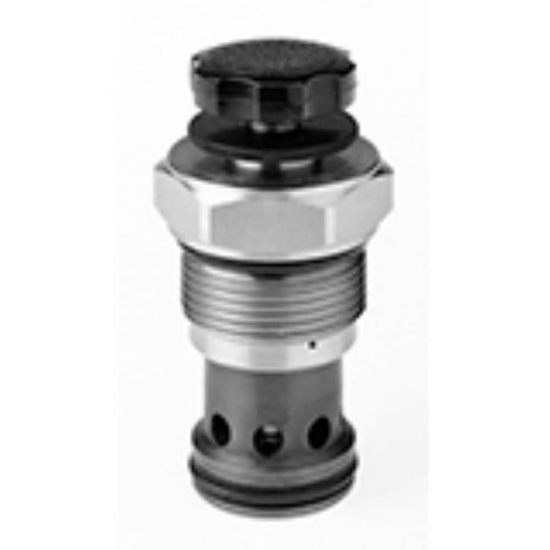

Pilot Operated Relief Valves - RAH201T20

Name: Pilot Operated Relief Valves - RAH201T20
SKU: RAH201T20

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Availability:

Backordered

SKU RAH201T20

POR

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	100 GAL/MIN, 379 L/MIN	Pressure Control Range	200-2000 PSI, 13.8-138 BAR
Seal Material	Nitrile	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR	Actuation Type	Pressure Sensing
Standard Setting Pressure	1000	Maximum Pressure Setting	2000
Pressure Control Range	200-2000	Reseat Pressure	80% of pressure setting
Maximum Flow Rate	100	Maximum Tank Pressure	5000
Body Material	n/a	Maximum Operating Pressure	5000
Installation Torque	98	Minimum Operating Temperature	-30
Seal Material	Nitrile	Operation Type	Automatic
Weight	2	Division	Hydraulic Systems Division
Mounting Type	Screw in cartridge valve	Cavity Size	C20-2
Leak Rate	5 per @ 100 psi (6.8 bar) setting	Maximum Inlet Pressure Rating	5500
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Pressure Control Sensitivity	539 per turn
Configuration	Pressure Relief	Division	Hydraulic Valve Systems Division
Maximum Operating Temperature	+250	Flow Rate	100
Function	Pilot Operated	Valve Material	All parts steel. All operating parts hardened steel
Adjustment Mechanism	Tamper Resistant	Operating Temperature	-30 to +250
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
