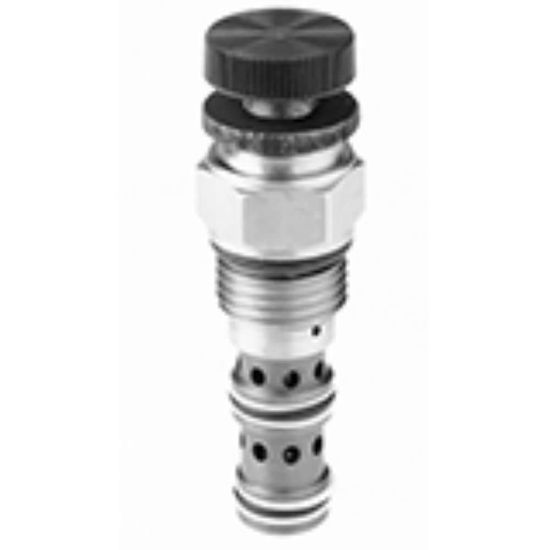

Pilot Operated Sequence Valves - SVH162T30

Name: Pilot Operated Sequence Valves - SVH162T30
SKU: SVH162T30

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:

Backordered

SKU SVH162T30

POR

Qty:

Products specifications

Attribute name	Attribute value
Pilot Option	External	Pressure Range Adjustment (psi)	300-3000
Cracking Pressure (psi)	N/A	Seal Material	Nitrile
Drain Option	Internal	Adjustment Type	Tamper Resistant
Rated Flow (gpm)	40	Weight	1
Mounting Type	Threaded Cartridge Valve	Division	Hydraulic Valve Systems Division
Maximum Operating Temperature	+250	Valve Material	All parts steel. All operating parts hardened steel
Adjustment Mechanism	Tamper Resistant	Reseat Pressure	80% of set pressure
Port Size	n/a	Operating Temperature	-30 to +250
Leak Rate	5 per 100 psi (6.8 bar) setting	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Standard Setting Pressure	1500
Division	Hydraulic Systems Division	Maximum Flow Rate	40
Drain Option	Internal	Pressure Control Range	300-3000
Pilot Location	External	Cavity Size	6-3
Cracking Pressure	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Pressure	5500	Maximum Inlet Pressure Rating	5500
Installation Torque	73	Flow Rate	40
Body Material	n/a	Maximum Tank Pressure	5000
Maximum Pressure Setting	3000	Maximum Drain Flow Rate	3.1
Minimum Operating Temperature	-30	Function	Pilot Operated Sequence
Actuation Type	Pressure Sensing	Seal Material	Nitrile
Pressure Control Sensitivity	867 per turn
