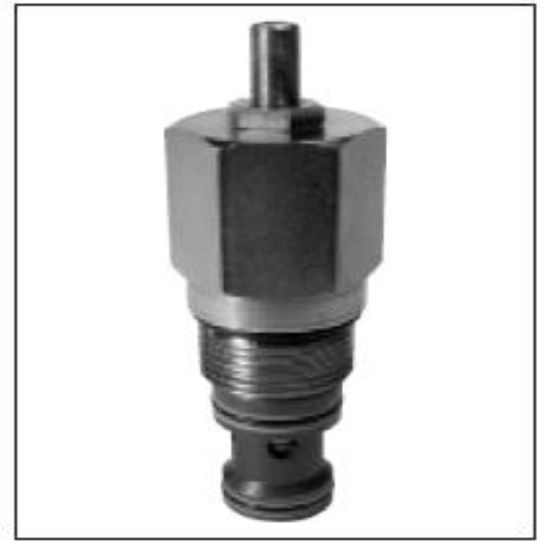

Pilot Operated Ventable Relief Valves - A06H3PTV

Name: Pilot Operated Ventable Relief Valves - A06H3PTV
SKU: A06H3PTV

REGIONAL - Parker’s pilot operated ventable relief valves offer the ability to control the pressure setting via internal adjustment or remote circuit; ideal in applications that require multiple settings up to 420 bar (6000 psi) and 400 lpm (106 gpm).

Availability:

Backordered

SKU A06H3PTV

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Adjustment Mechanism	Tamper Resistant
Pressure Control Range	145-6000 PSI, 10-420 BAR	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	106 GAL/MIN, 400 L/MIN	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	6000 psi	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Mineral-based Hydraulic Fluids	Operating Temperature	-26 to 204 °C
Valve Material	Steel (all parts)	Filter Efficiency Rating	SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-26 °C
Cavity Size	C16-3S	Weight	0.58 kg
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Division	Mobile Hydraulic Systems Division Europe	Operation Type	Automatic
Reseat Pressure	n/a	Adjustment Mechanism	Tamper Resistant
Maximum Tank Pressure	420 bar	Pressure Control Sensitivity	800 psi Per Turn
Maximum Inlet Pressure Rating	420 bar	Function	Pilot Operated
Leak Rate	100 cm3/min @ 1450 Psi (100 bar)	Configuration	Ventable Pressure Relief
Pressure Control Range	10 to 420 bar	Maximum Pressure Setting	6000 psi
Standard Setting Pressure	200 bar	Flow Rate	400 L/min
Maximum Flow Rate	400 L/min	Installation Torque	100 Nm
