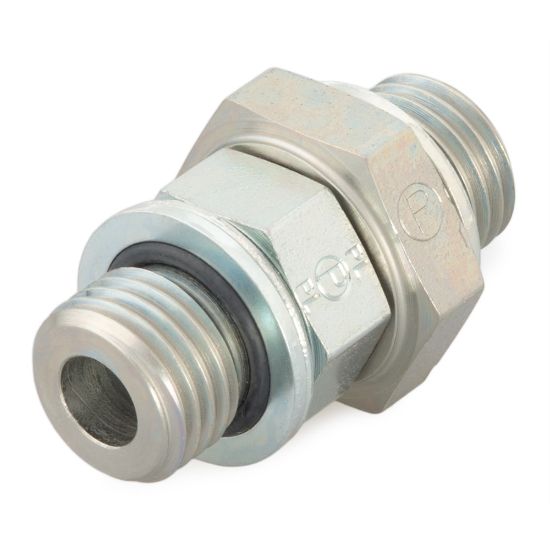

Pipe Fittings and Port Adapters - M33F8OHA8OS

Name: Pipe Fittings and Port Adapters - M33F8OHA8OS
SKU: M33F8OHA8OS

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:

Backordered

SKU M33F8OHA8OS

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection 2 Style	Male Metric O-ring Retaining Ring	Body Material	Steel
Connection 1 Thread Size (mm)	M33X2	Connection 1 Style	Male Metric O-Ring Retaining Ring
Shape	Straight	Connection 2 Thread Size (mm)	M33X2
O-Ring Material	90 Durometer Nitrile	Connection Style	Metric O-ring Retaining Ring to Metric O-ring Retaining Ring
Connection 1 Thread Size (inch)	na	Connection 2 Thread Size (inch)	na
Connection 3 Thread Size (inch)	na	Connection 3 Style	na
Length (inch)	na	Division	Tube Fittings Division
Body Material	Steel	Connection 4 Size	na
Maximum Dynamic Pressure	3000 psi	Fitting Type	Port Adapter
Connection 4 Thread Size	na

California Residents: Prop-65 Warning

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
