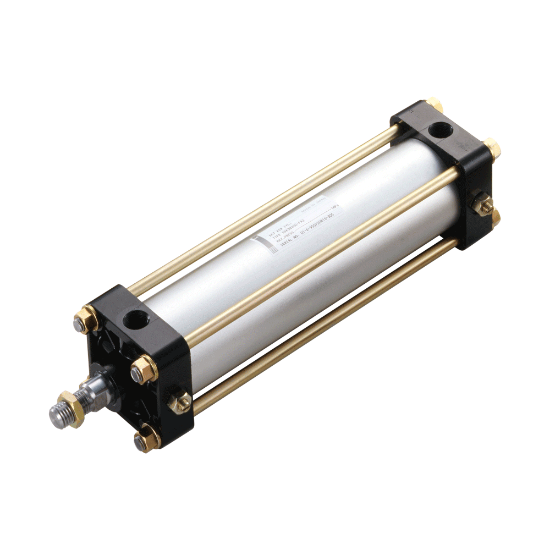

Picture of Pneumatic Cylinder Model:DC7 - DC7H

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pneumatic Cylinder Model:DC7 - DC7H

Series DC7 heavy duty steel pneumatic cylinders offer advanced features like the strong scraper gland assembly, case hardened piston rods and high strength tie rods with rolled threads.
Availability:
Backordered
SKU DC7H
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Proof Pressure (MPa)1.5Speed Range50-500mm/s
Pressure Range (MPa)0.05-1.0Temperature Range (C)-10-+60(No freezing)
Mounting StyleSD, LB, FA, FB, CA, CB, TCScrew ToleranceJIS 6g/6H
Stroke Length Tolerance (mm)0-250:0-+1.0 251-1000:0-+1.5 1001-1500:0-+2.0Bore Diameter (mm)40, 50, 63, 80, 100, 125, 150
Cushioning Stroke (mm)φ40-63:20, φ80-100:25, φ125-150:35 (Cushion ring length)Fluid TypeAir
Bellows MaterialStandard：Nylon tarpaulin Semi-standard：Chloroprene,ConexLubricationUnnecessary Once lubricating the cylinder, you must lubricate it constantly.
Rod End StylesRod eye(T-end),Rod clevis(Y-end)with pinRelated PartsLock nut
TypeWith Heavy-duty Scraper Type, Double acting single rod, Standard typeCushioning TypeWith cushions on both ends
DivisionTAIYO Division
