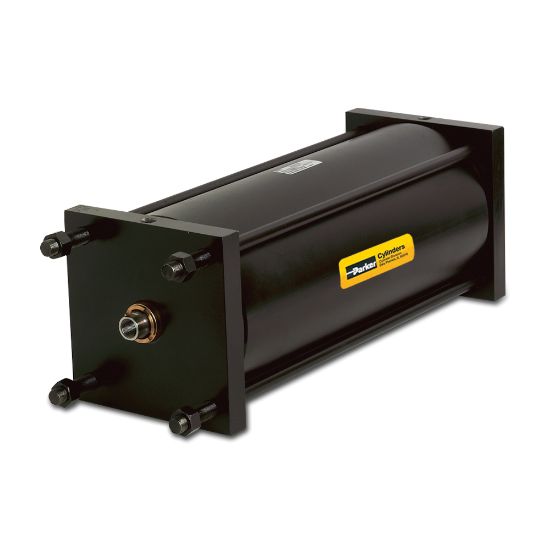

Picture of Pneumatic Cylinders for Valve Actuation – Series VE - SERIES VE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pneumatic Cylinders for Valve Actuation – Series VE - SERIES VE

Series VE Pneumatic Cylinders provide a cost-effective solution for knife gate valve actuation, utilizing proven seal technology, the highest quality materials and stringent manufacturing standards.
Availability:
Backordered
SKU SERIES VE
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Operating Pressure150Product SeriesSeries VE Valve Actuation Pneumatic Cylinders
Bore Diameter2 to 24DivisionCylinder Division
Materials of ConstructionSteelRod Diameter0.625 to 3.5
Mounting Type2 Standard StylesOperating Temperature-10 to 165
ConfigurationTie RodFor Fluid TypeFiltered Air
Stroke LengthAvailable in any practical stroke length.TechnologyPneumatics
Product TypeCylinder Actuator
