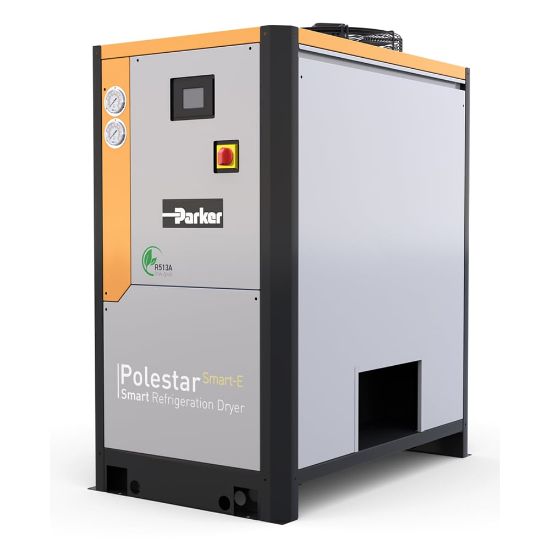

Picture of PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers - PSE140-A4X03DF14EI

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers - PSE140-A4X03DF14EI

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 10800m³/h (50Hz) or 11812m³/hr (60Hz) @ 7 barg.
Availability:
Backordered
SKU PSE140-A4X03DF14EI
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate840 m³/h @ 7 barg (494 cfm @ 102 psig) 50 HzCooling MethodAir Cooled
DivisionGas Separation and Filtration Division EMEAOperating Temperature41 to 149 °F
IndustryIndustrial Manufacturing EquipmentBrandPARKER
Flow Rate534.0 CFM at 102 psig, 60HzTechnologyFiltration
Port Size2 inchProduct StyleRefrigeration
Pressure Dew PointStandard: 3°C (37°F)<br/>Width703.0 mm
Operating Pressure29 to 203 psigWeight452 lb
Refrigerant TypeR513A (Low GWP Refrigerant)Ambient Temperature122.0 °F Maximum
ApplicationCompressed Air ApplicationsIngress Protection RatingIP44 Indoor Use Only
Electrical Requirements400V 3ph 50Hz / 460V 3ph 60HzProduct SeriesPoleStar Smart-E
Power Consumption1.32 kW (50Hz)Specifications MetPED 2014/68/EU Fluid Group II
Connection TypeBSPPHeight1365.0 mm
DivisionGas Separation and Filtration Division EMEADepth45.3 inch
