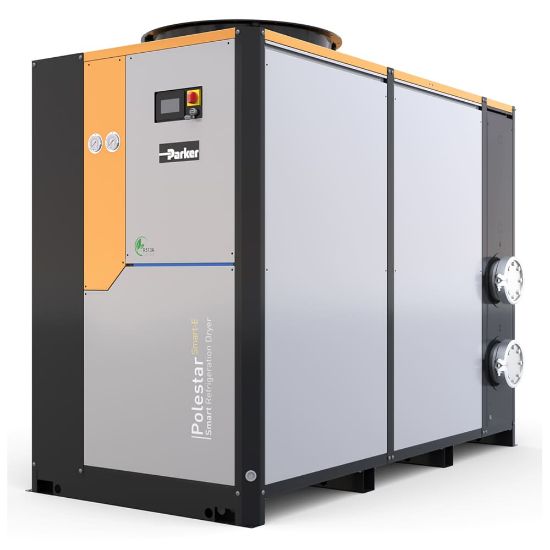

Picture of PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers - PSE1800-A4X03DF14EITS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers - PSE1800-A4X03DF14EITS

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 10800m³/h (50Hz) or 11812m³/hr (60Hz) @ 7 barg.
Availability:
Backordered
SKU PSE1800-A4X03DF14EITS
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Cooling MethodAir CooledFlow Rate10800 m³/h @ 7 barg (6357 cfm @ 102 psig) 50 Hz
Port SizeDIN200DivisionGas Separation and Filtration Division EMEA
Width1517.0 mmProduct SeriesPoleStar Smart-E
Electrical Requirements400V 3ph 50Hz / 460V 3ph 60HzTechnologyFiltration
Flow Rate6952.0 CFM at 102 psig, 60HzProduct StyleRefrigeration
Connection TypeBSPPIngress Protection RatingIP54 Indoor Use Only
Specifications MetPED 2014/68/EU Fluid Group IIAmbient Temperature122.0 °F Maximum
ApplicationCompressed Air ApplicationsOperating Temperature41 to 149 °F
DivisionGas Separation and Filtration Division EMEAHeight2040.0 mm
IndustryIndustrial Manufacturing EquipmentBrandPARKER
Power Consumption13.45 kW (50Hz)Pressure Dew PointStandard: 3°C (37°F)<br/>
Refrigerant TypeR513A (Low GWP Refrigerant)Weight2668 lb
Operating Pressure29 to 203 psigDepth2529.0 mm
