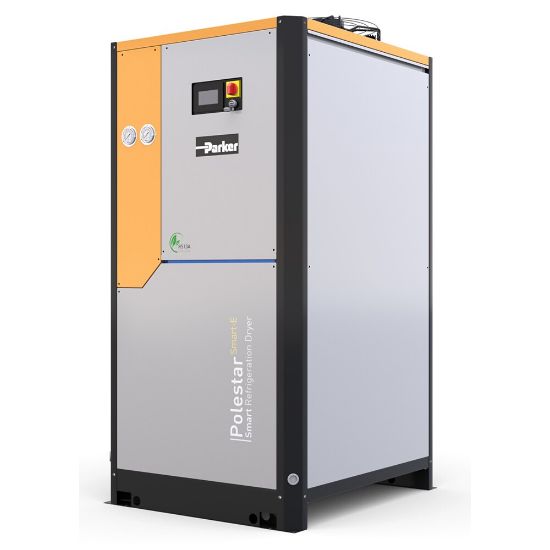

Picture of PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers - PSE460-A4X03DF14EITS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers - PSE460-A4X03DF14EITS

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 10800m³/h (50Hz) or 11812m³/hr (60Hz) @ 7 barg.
Availability:
Backordered
SKU PSE460-A4X03DF14EITS
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate2760 m³/h @ 7 barg (1625 cfm @ 102 psig) 50 HzCooling MethodAir Cooled
Refrigerant TypeR513A (Low GWP Refrigerant)ApplicationCompressed Air Applications
Operating Pressure29 to 203 psigFlow Rate3005.0 m3/hour at 7 barg, 60Hz
Ambient Temperature122.0 °F MaximumIndustryIndustrial Manufacturing Equipment
Product SeriesPoleStar Smart-EHeight2055.0 mm
Port SizeDIN100Connection TypeBSPP
Width973.0 mmSpecifications MetPED 2014/68/EU Fluid Group II
Weight838 lbDivisionGas Separation and Filtration Division EMEA
Electrical Requirements400V 3ph 50Hz / 460V 3ph 60HzPressure Dew PointOptions: 7°C (45°F) or 10°C (50°F)
Operating Temperature41 to 149 °FProduct StyleRefrigeration
DivisionGas Separation and Filtration Division EMEAPower Consumption4 kW (60Hz)
BrandPARKERDepth50.7 inch
TechnologyFiltrationIngress Protection RatingIP54 Indoor Use Only
