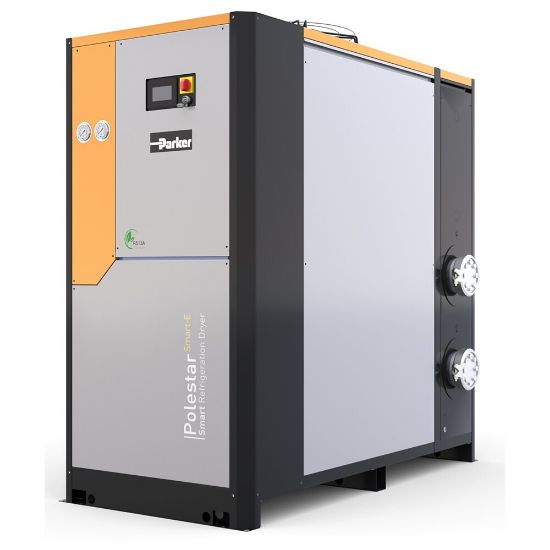

Picture of PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers - PSE900-S4X03DF14EITS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PoleStar Smart-E Medium to Large Flow Compressed Air Refrigeration Dryers - PSE900-S4X03DF14EITS

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 10800m³/h (50Hz) or 11812m³/hr (60Hz) @ 7 barg.
Availability:
Backordered
SKU PSE900-S4X03DF14EITS
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Cooling MethodWater CooledFlow Rate5400 m³/h @ 7 barg (3178 cfm @ 102 psig) 50 Hz
Ambient Temperature50.0 °C MaximumProduct SeriesPoleStar Smart-E
Operating Temperature25 to 65 °CFlow Rate3506.0 CFM at 102 psig, 60Hz
Specifications MetPED 2014/68/EU Fluid Group IIConnection TypeBSPP
Electrical Requirements400V 3ph 50Hz / 460V 3ph 60HzDivisionGas Separation and Filtration Division EMEA
Width1205.0 mmBrandPARKER
Product StyleRefrigerationDivisionGas Separation and Filtration Division EMEA
Port SizeDIN150TechnologyFiltration
Depth77.7 inchIngress Protection RatingIP54 Indoor Use Only
ApplicationCompressed Air ApplicationsOperating Pressure29 to 203 psig
Refrigerant TypeR513A (Low GWP Refrigerant)Pressure Dew PointStandard: 3°C (37°F)<br/>
Power Consumption11 kW (60Hz)Weight1698 lb
IndustryIndustrial Manufacturing EquipmentHeight80.9 inch
