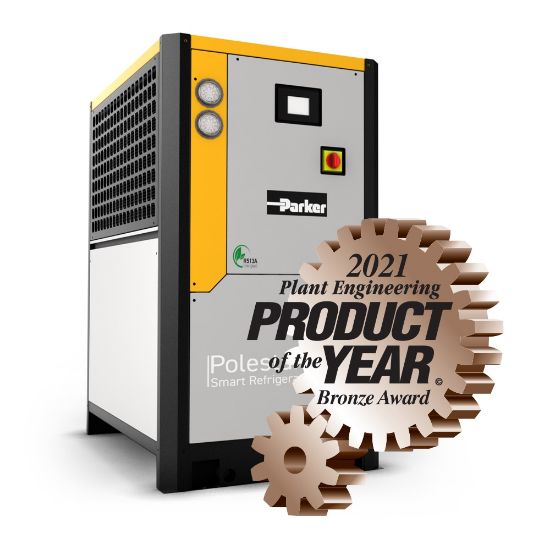

Picture of PoleStar Smart-E (PSE) Series Cycling Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America - PSE6000-A46036014EITS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PoleStar Smart-E (PSE) Series Cycling Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America - PSE6000-A46036014EITS

Energy saving refrigerated compressed air dryers effecitve in removing water vapor, down to levels in accorance with ISO8573-1, from compressed air flow rates between 325-6000 scfm while maintaining industry leading low operating costs.
Availability:
Backordered
SKU PSE6000-A46036014EITS
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Design Rating100 psig (7 barg) inlet, 100°F (38°C) inlet & 100°F (38°C) ambientElectrical Requirements460V / 3Ph / 60Hz
Cooling MethodAir Cooled CondenserFlow Rate6000 scfm (10194 m3/h)
Width59.7 inchPort Connection8 in
Minimum Operating Temperature5.0 °CMaximum Operating Pressure14.0 barg
Optional AccessoriesDryer OnlyMaximum Operating Temperature65.0 °C
Height80.3 inchMinimum Operating Pressure29.0 psig
Weight1210 kgTechnologyCycling
DivisionIndustrial Gas Filtration and Generation DivisionElectronics TypeETL Listed
Refrigerant TypeR-513ADepth99.6 inch
Connection TypeANSI 150#Maximum Ambient Temperature122.0 °F
BrandPARKERProduct TypeRefrigeration
Ingress Protection RatingIP54Pressure Dew PointISO 8573-1 Class 5 for Water
