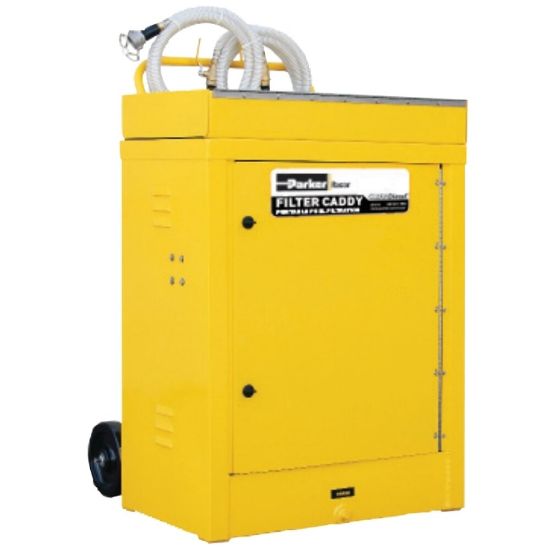

Picture of Portable Fuel Filtration Carts - Racor - FC-10-1

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Portable Fuel Filtration Carts - Racor - FC-10-1

Racor Portable Fuel Filtration Carts are high-efficiency mobile filtration systems that clean fuel by removing water and contaminants that make their way into tanks during handling, transfer, and storage.
Availability:
Backordered
SKU FC-10-1
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Design FactorFBO in EnclosureFlow Rate10 gpm
Accessories Included2x 10' Hoses, 2x 3' ProbesOutlet Port Type3/4" Ball Valve, quick disconnects
Width76 cmMaximum Pressure Differential'Clean DP=2.5 psid. Change DP=30 psid psi
Maximum Operating Pressure1034 kPaWeightn/a Contact us
Height108 cm (less handle)Input Power115.0 VAC at 15 A
Product SeriesPortable FiltrationMicron Rating5 μm
DivisionEngine Mobile Original Equipment DivisionCompatible ElementFBO 60337 or other FBO element type depending on application needs.
For Fluid TypeHydrocarbon FuelsFilter Element TypeWater Separator
BrandRacorFlow Rate37.5 L/min
Inlet Port SizeQuick Disconnect Ball ValvesLength28 inch
Maximum Fluid Temperature38 °C
