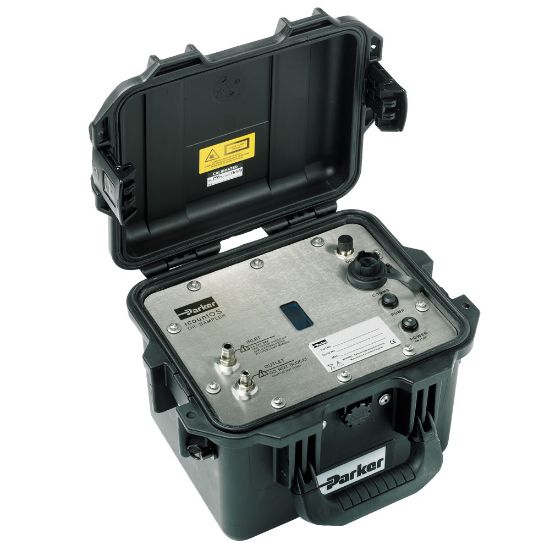

Picture of Portable Particle Monitor – iCountOS - IOS1221EUR

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Portable Particle Monitor – iCountOS - IOS1221EUR

The iCountOS is a highly rugged portable particle size monitor that can be used for measuring contamination levels in fuels and/or hydraulic fluids. Capable of operation online (direct connection to system) or offline (sampling from tank or reservoir).
Availability:
Backordered
SKU IOS1221EUR
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Fluid TypeMineral-based Oils, Petroleum-based FuelConnection StyleOnline
Electrical ConnectionEURCommunication InterfaceWiFi
BrandPARKERPort TypeMetric
Body MaterialBrassDivisionHydraulic & Industrial Process Filtration Division EMEA
DivisionHydraulic & Industrial Process Filtration Division EMEATechnologyHydraulics
Seal MaterialFluorocarbonProduct TypeCondition Monitor
Maximum Fluid Temperature80 °CPort SizeM16
Product StyleParticle Detector/CounterSensing MethodLaser
Minimum Fluid Temperature5 °CIngress Protection RatingIP54
Cycle Time30 secondSignal OutputRS232
For Fluid TypeMineral-based OilsCalibration TypeMTD
IndustryPower Generation & Renewable EnergyOperating Pressure35 to 5000 psi
Specifications MetIP68Operating Temperature-30 to 80 °C
Width299 mmHeight195 mm
Length248 mmWeight5.5 kg
Accuracy+/- 1 ISO codeFlow Rate60 ml/min
Operating Humidity5 to 100% (RH)Inlet Connection Size6 mm
Outlet Connection Size4 mmCommunication InterfaceWiFi up to 20 metres
Electrical Requirements12V Rechargeable BatteryMaterials of ConstructionStorm Case
Maximum Ambient Temperature176 °FMaximum Kinematic Viscosity300 cSt
Minimum Ambient Temperature-40 °C
