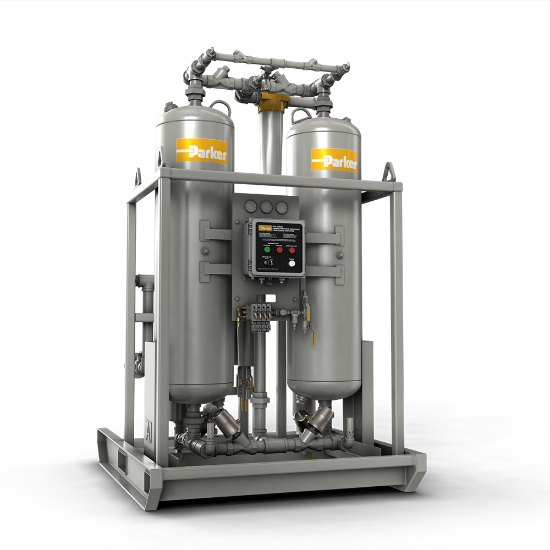

Picture of PPD Series Portable Desiccant Compressed Air Dryers - PPD1000RA-350

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PPD Series Portable Desiccant Compressed Air Dryers - PPD1000RA-350

Highly engineered portable desiccant compressed air treatment systems, ideal for rental applications, that deliver high quality compressed air in accordance with ISO8573-1, the international standard for compressed air.
Availability:
Backordered
SKU PPD1000RA-350
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Cooling MethodIntegrated Air Cooled AftercoolerController TypeAdvanced PLC
Flow Rate1800 scfm (3051 m3/h)Design Rating350 psig (24 barg) inlet, 100°F (38°C) inlet & 100°F (38°C) ambient
Communication InterfaceModbus via Ethernet and RS485Height92.8
Maximum Operating Temperature250.0TechnologyHeatless Regeneration
Ingress Protection RatingNEMA 4Product TypeDesiccant (Adsorption) Dryer
Minimum Operating Temperature40.0Pressure Dew Point-40
Connection Type3” BOSS/NPT/FLGDivisionIndustrial Gas Filtration and Generation Division
Electronics TypeETL ListedMaximum Ambient Temperature105.0
Minimum Ambient Temperature40.0Industry ApplicationPortable / Rental Equipment
Width70Depth84.5
Electrical Requirements115V/1Ph/50-60HzAccessories IncludedDewpoint Probe with Digital Dewpoint Display
Weight5700BrandPARKER
Maximum Operating Pressure150.0Minimum Operating Pressure80.0
