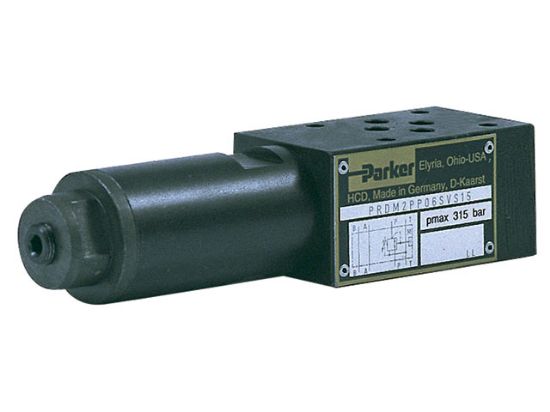

Picture of PRDM Series - Pressure Reducing - NFPA D05 (CETOP 5, NG 10) - PRDM3AA01KVM

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PRDM Series - Pressure Reducing - NFPA D05 (CETOP 5, NG 10) - PRDM3AA01KVM

PRDM Series - Pressure Reducing Parker Manapak Subplate Sandwich Module
Availability:
Backordered
SKU PRDM3AA01KVM
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Adjustment TypeKnobPkg Qty1
UOMEAControlled PortsA Port
Gauge Port SizeMetricPressure Range15 to 200 PSI (1 to 14 Bar)
Max Flow (at 3000 PSI)21 GPM (81 LPM)SealsFluorocarbon
Port TypeMetricAdjustment TypeKnob
Port SizeMetricPressure Range15 to 200 PSI (1 to 14 Bar)
SealsFluorocarbonMax Pressure4500 PSI (315 Bar)
Parker DivisionHydraulic ValveSeriesPRDM
Parker GroupHydraulicSubplate PatternNFPA D05 (CETOP 5, NG 10)
Controlled PortsA PortMax Flow (at 3000 PSI)21 GPM (81 LPM)
